| Title | Type | Size | |
|---|---|---|---|
|
B-540 Technical Data | application/pdf | 148 KB |
|
|
Bobrick Warranty | application/pdf | 174 KB |

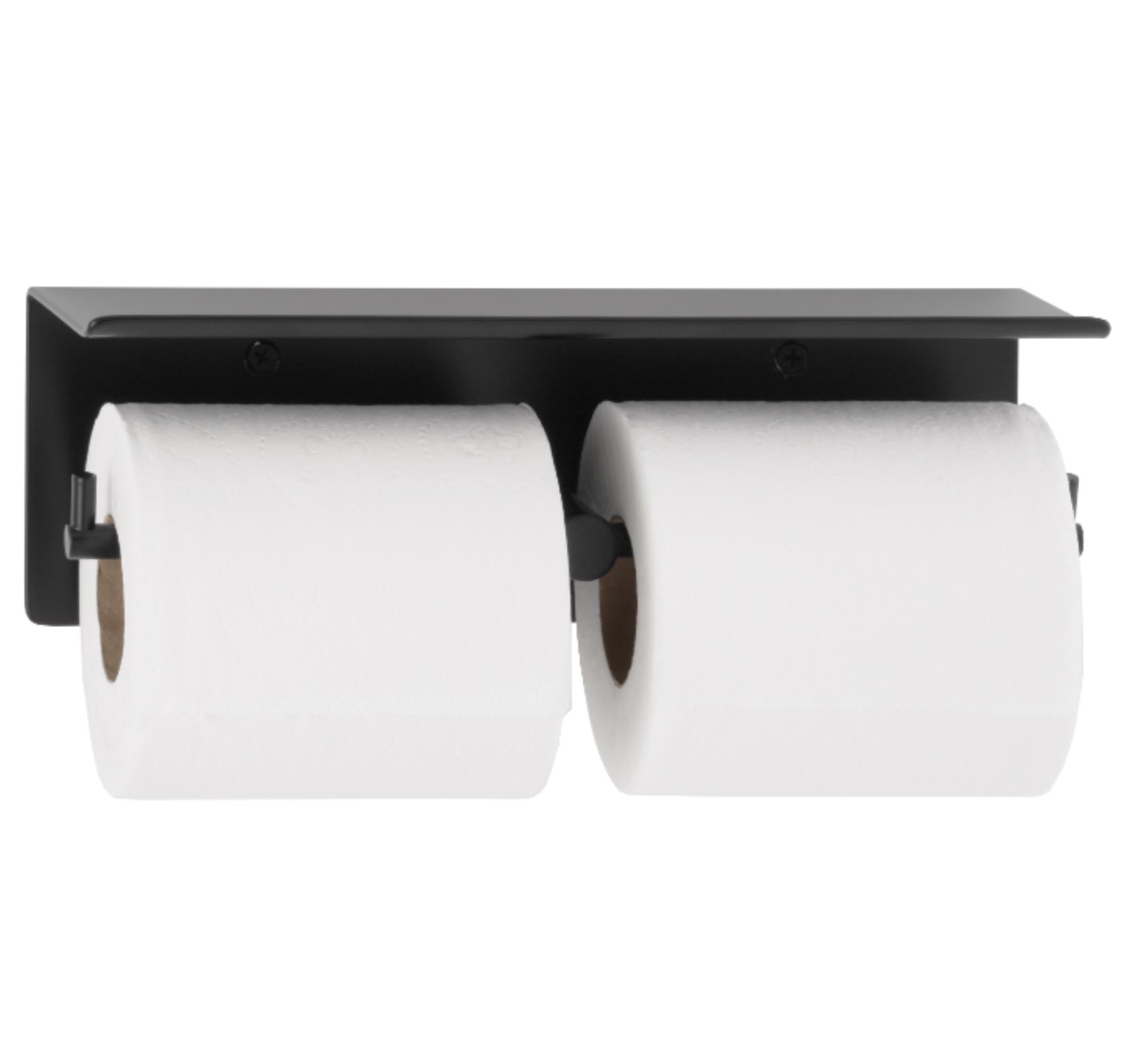

Bobrick B-540.mblk
$169.50
Log in for discounts
FREE GROUND SHIPPING IN USA
In stock
SHIPS WITHIN 2-3 BUSINESS DAYS
SKU: B-540.MBLK
Type-304, 14 gauge stainless steel in matte black finish. Shelf shall have 1/4″ (6mm) upward return front edge. Toilet Tissue Dispenser shall have 3/4″ (19mm) diameter Post. Dispenser bar shall be 3/8″ (9.5mm) diameter, secured to Post with a concealed set screw. Retaining pin shall be 1/4″ (6.4mm) diameter and pressed into Dispenser bar. Wall Plate equipped with two screw holes for attachment. Post and Wall Plate are to be securely welded as one piece. Dispenser Bar shall hold standard-core toilet tissue rolls up to 4-1/2″ (110mm) diameter (500 sheets).
