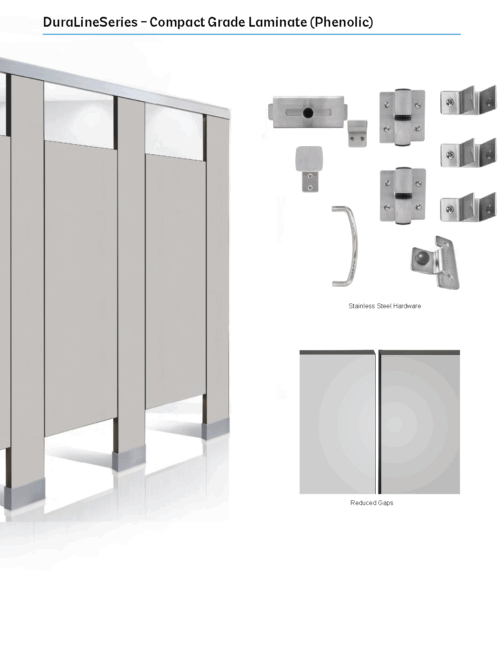

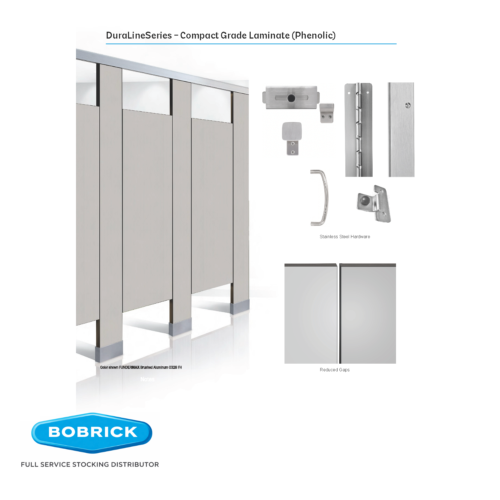

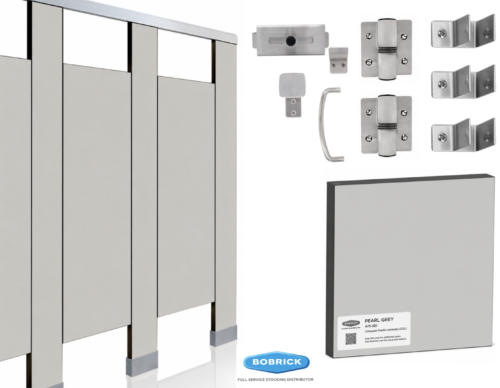

Bobrick 1082 Series Toilet Partitions
Product Overview
The Bobrick 1082 Series offers a highly durable and versatile compact laminate toilet partition system, engineered for high-traffic commercial and institutional environments. Its robust construction and thoughtful design make it suitable for demanding applications where longevity, low maintenance, and aesthetic flexibility are key considerations.
Key Specifications

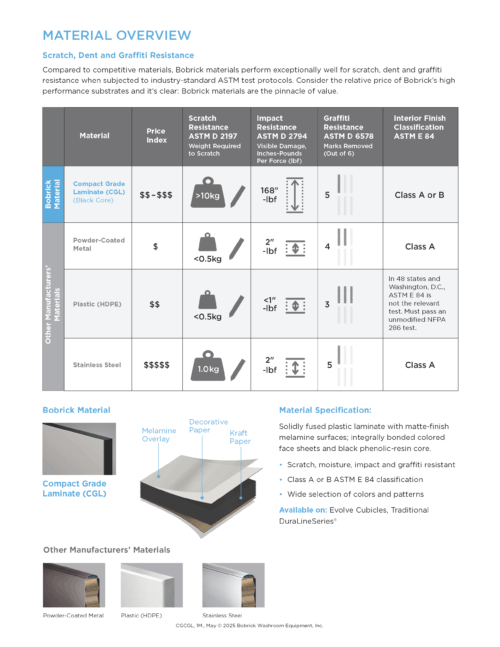

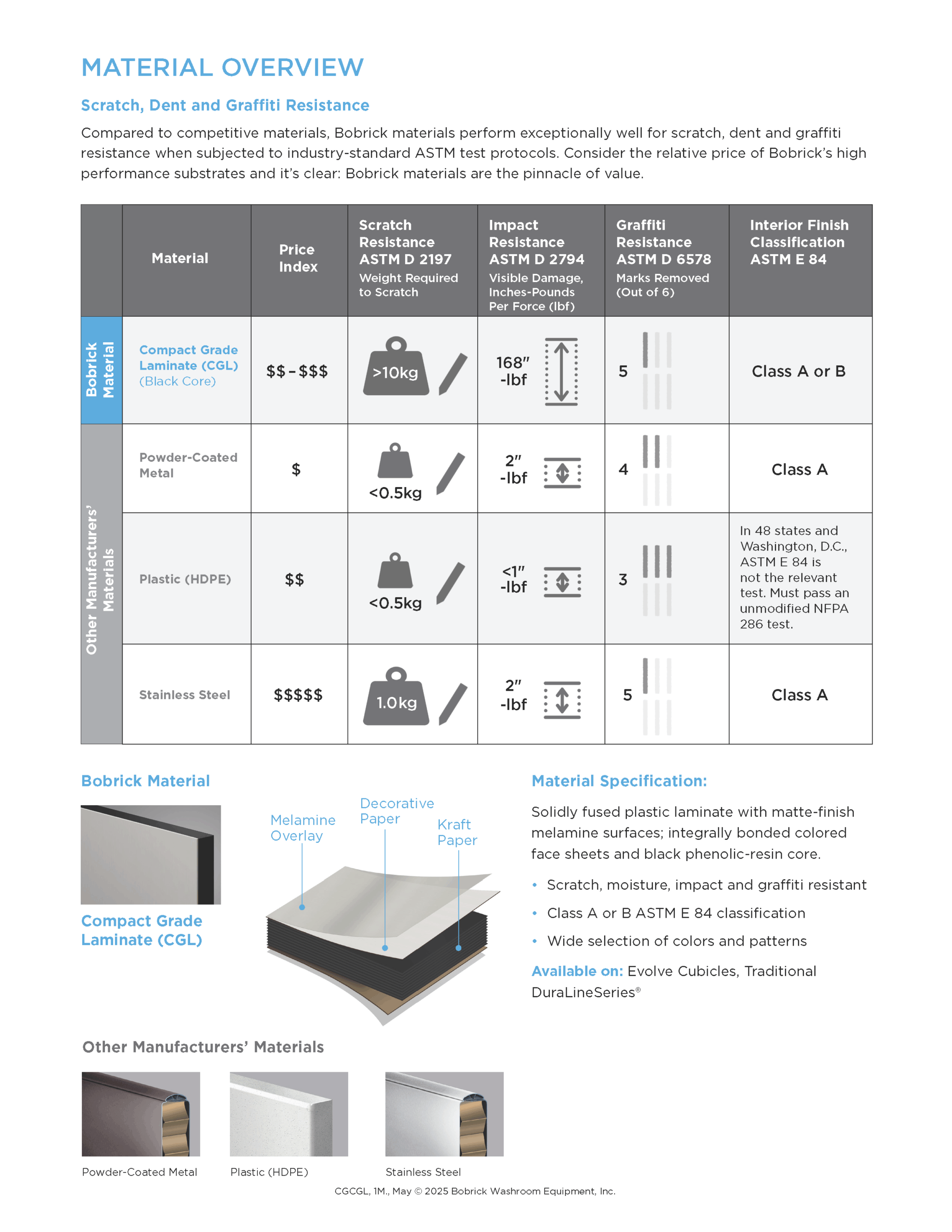

Material and Construction
- Core Material: DuraLine compact laminate with solid-core construction
- Composition: Compressed and baked resin-dipped Kraft paper with black edges
- Thickness: Doors 3/4″ (19mm), panels 1/2″ (13mm)
- Fire Rating: Class B ASTM E84 compliant

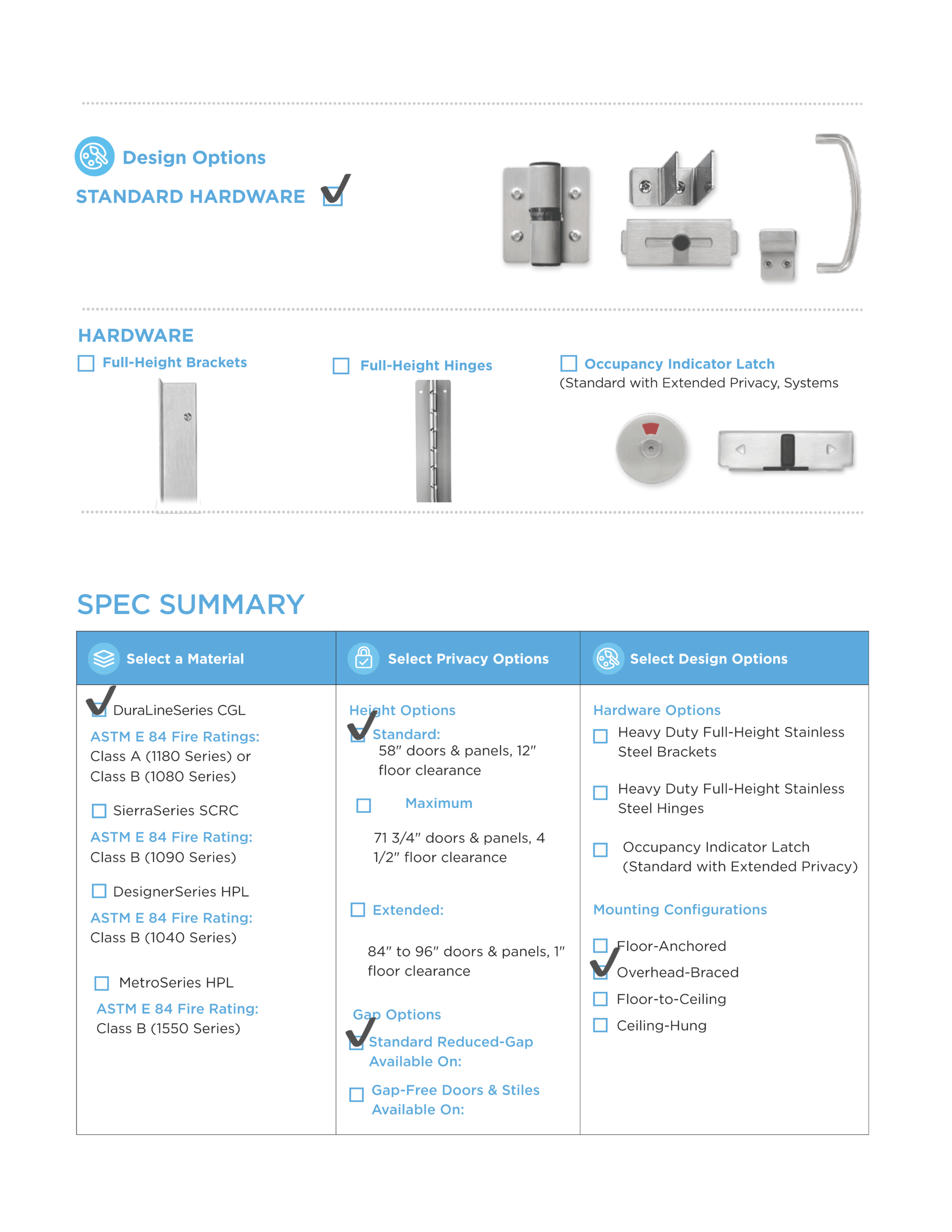

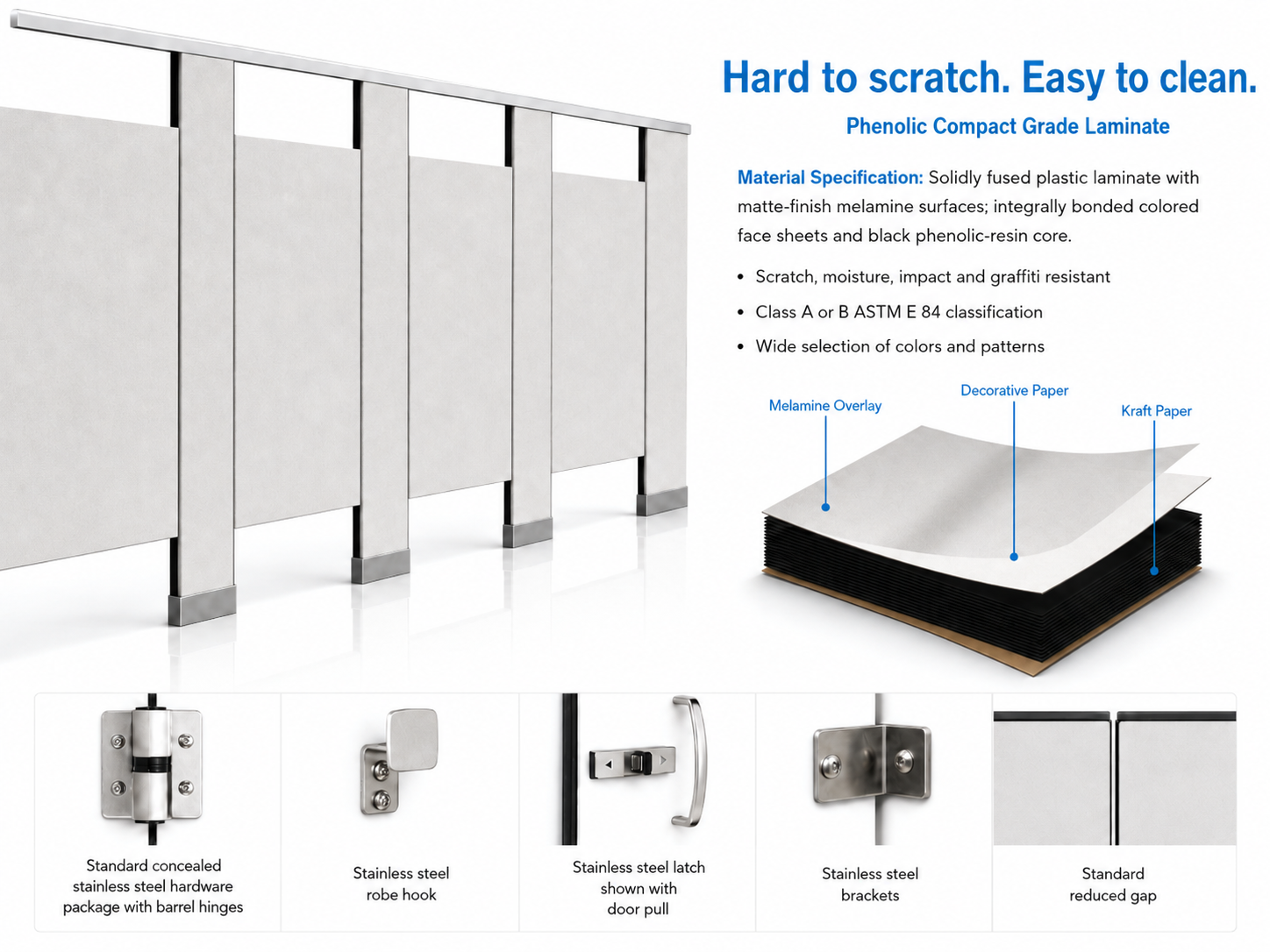

Hardware Features
- Material: Heavy-gauge 18-8, Type-304 stainless steel with satin finish
- Hinges: Adjustable, balanced barrel hinges
- Security: Theft-resistant pin-in-head Torx screws
- Components: Latch and keeper, brackets, coat hooks included
- Heavy-Duty Option: Full-height steel brackets available
Design and Aesthetics

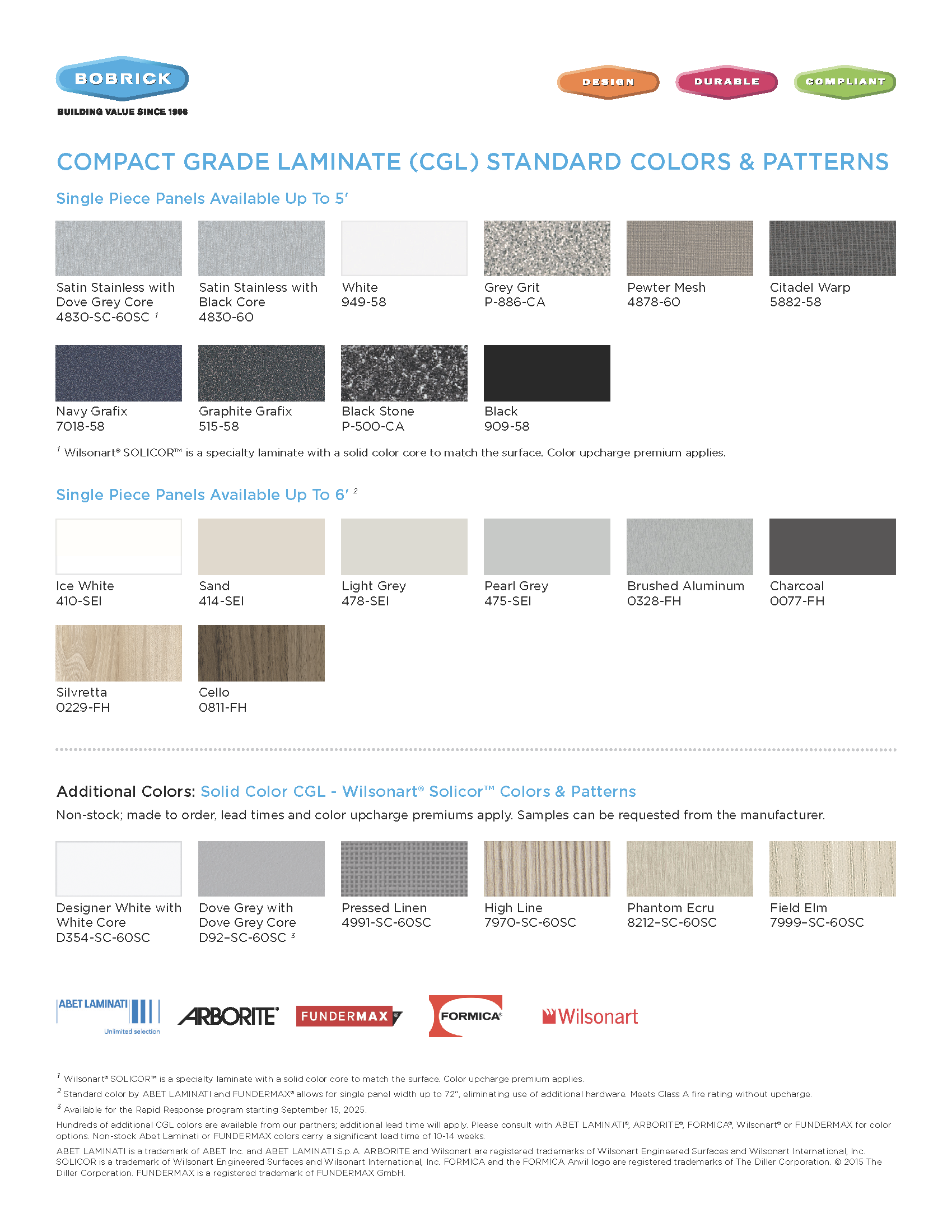

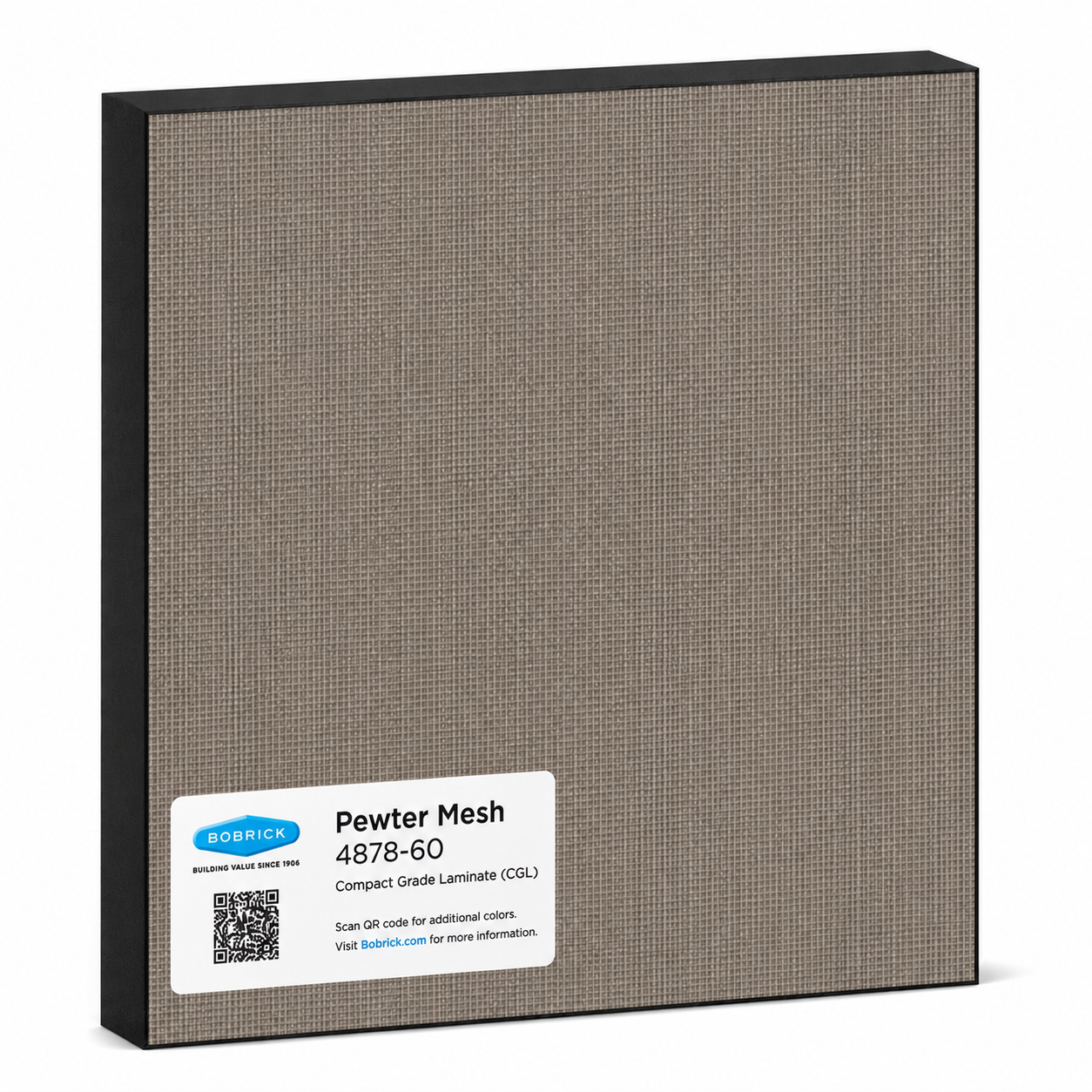

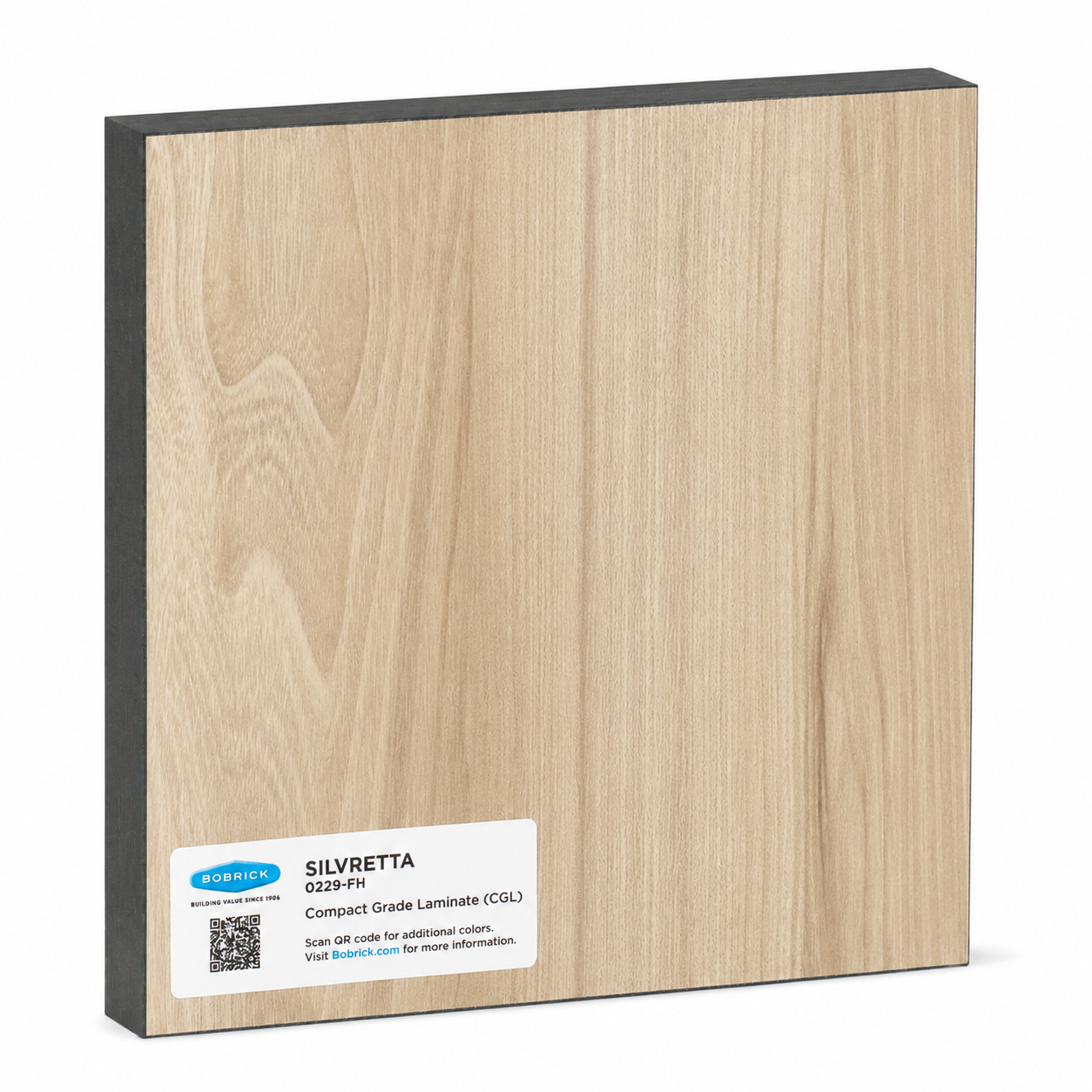

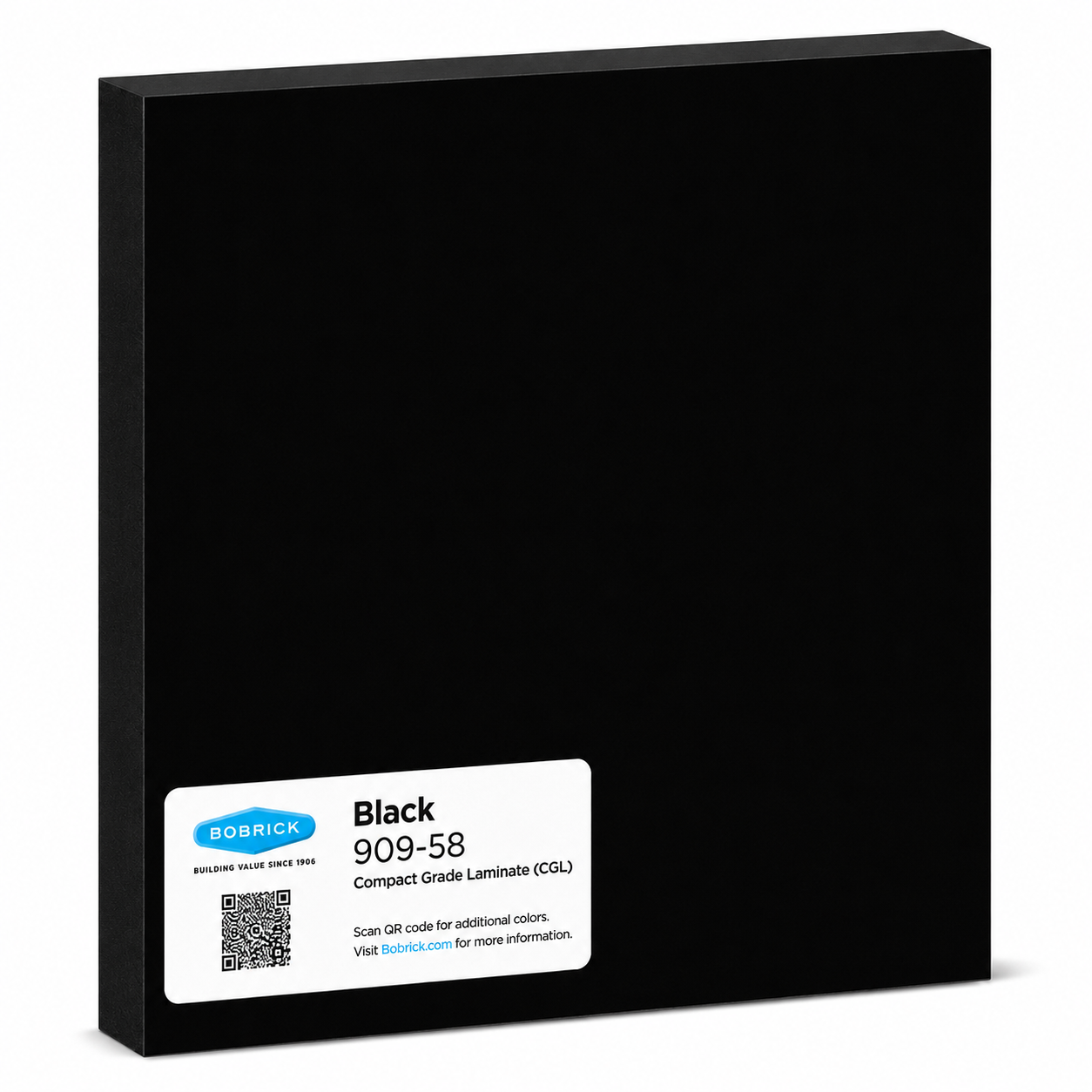

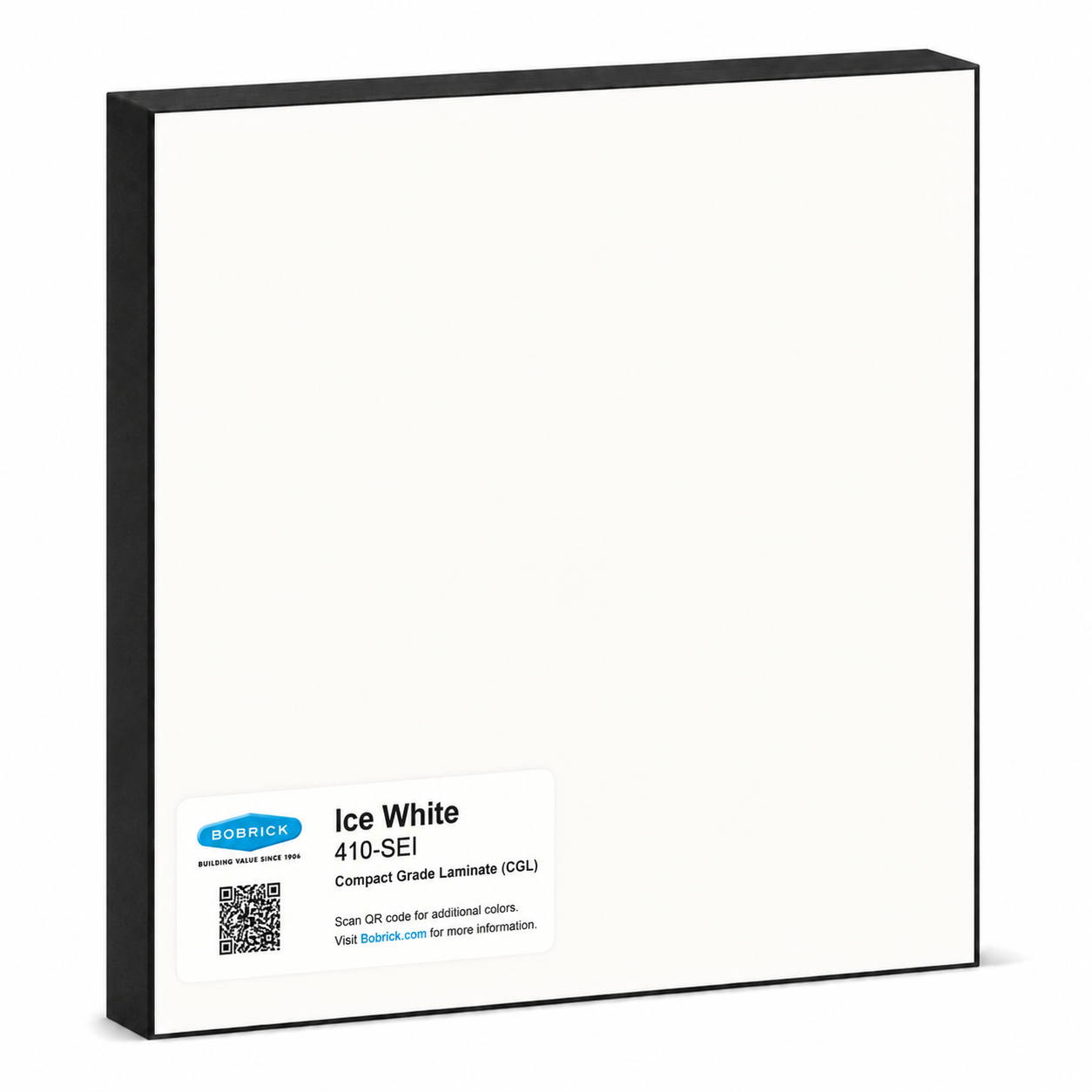

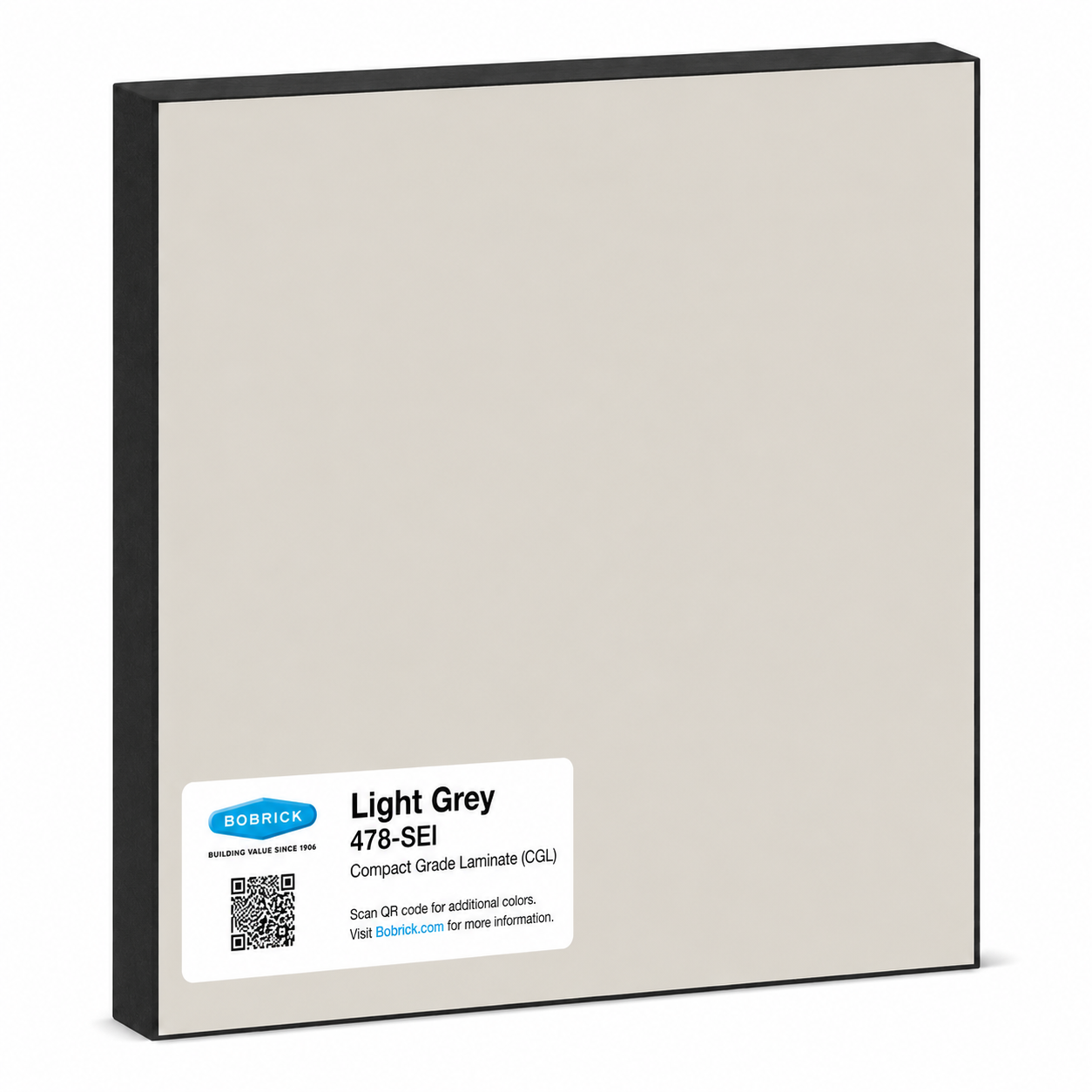

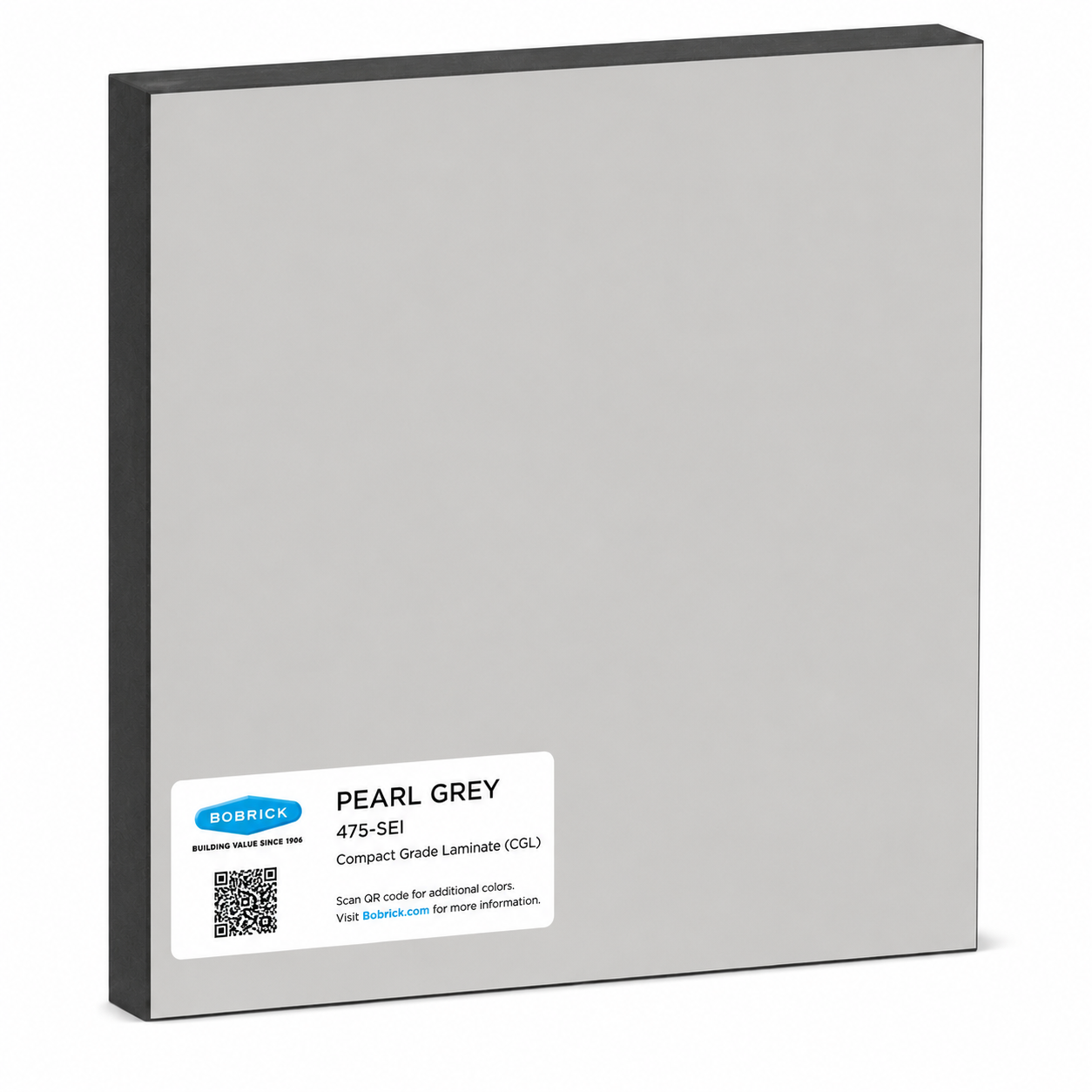

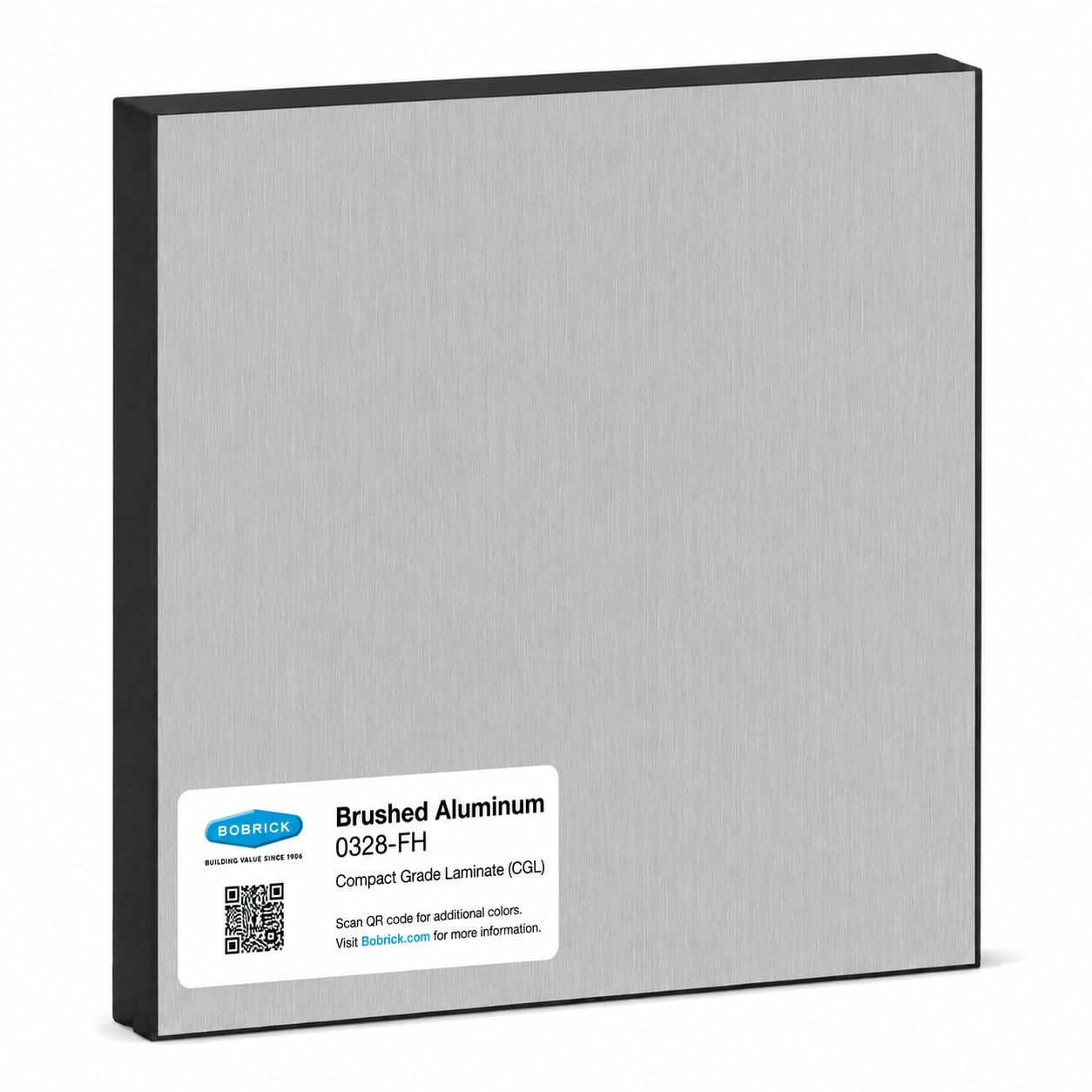

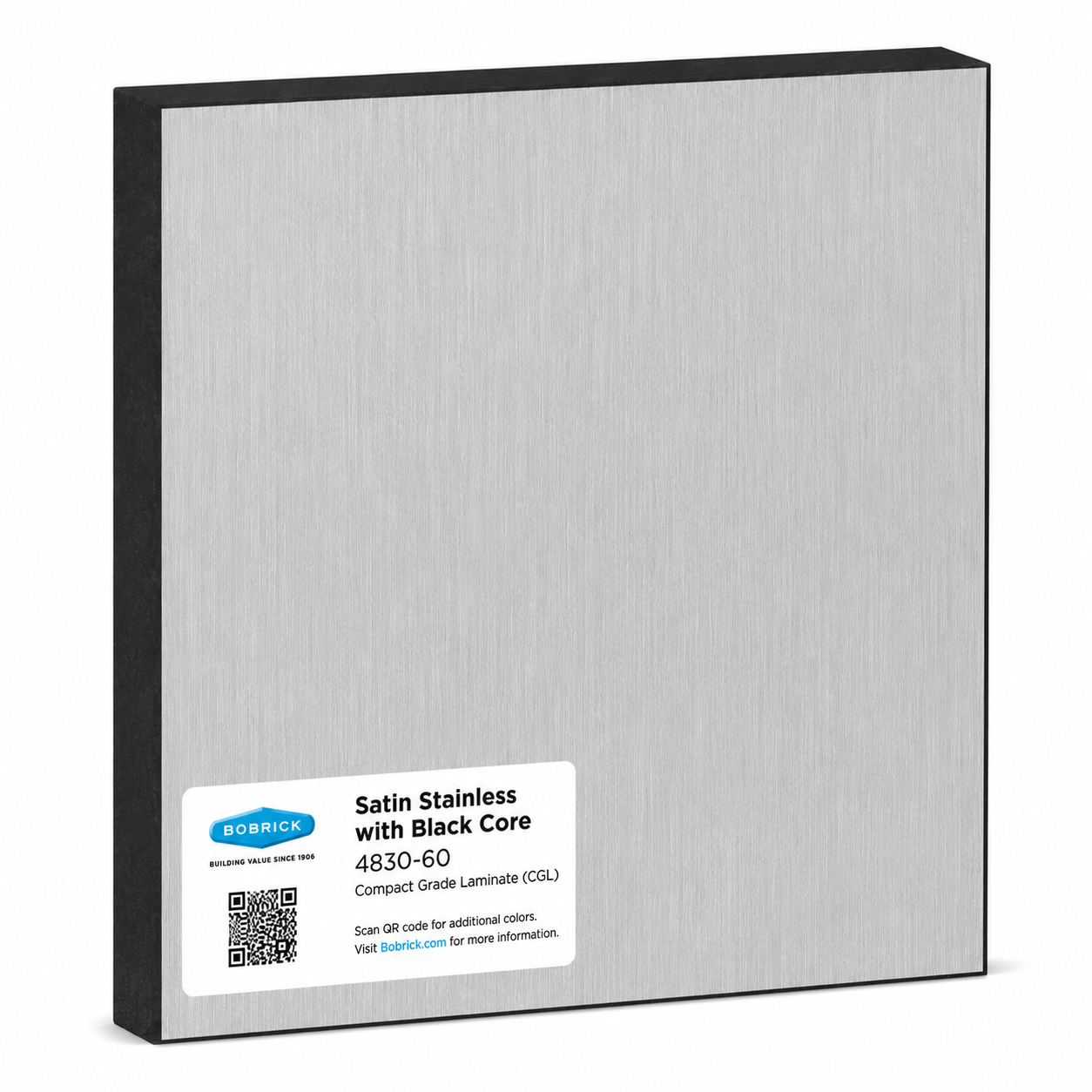

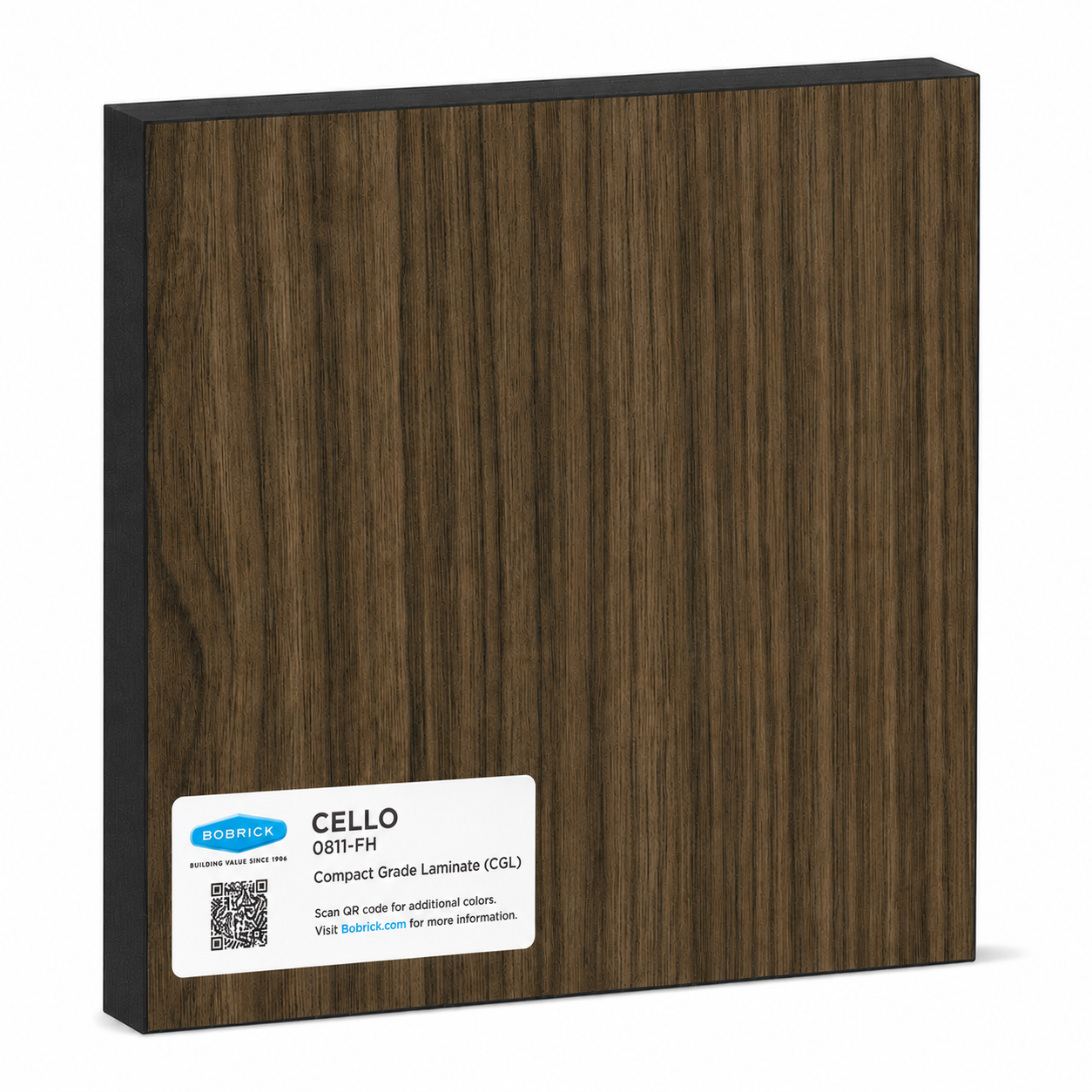

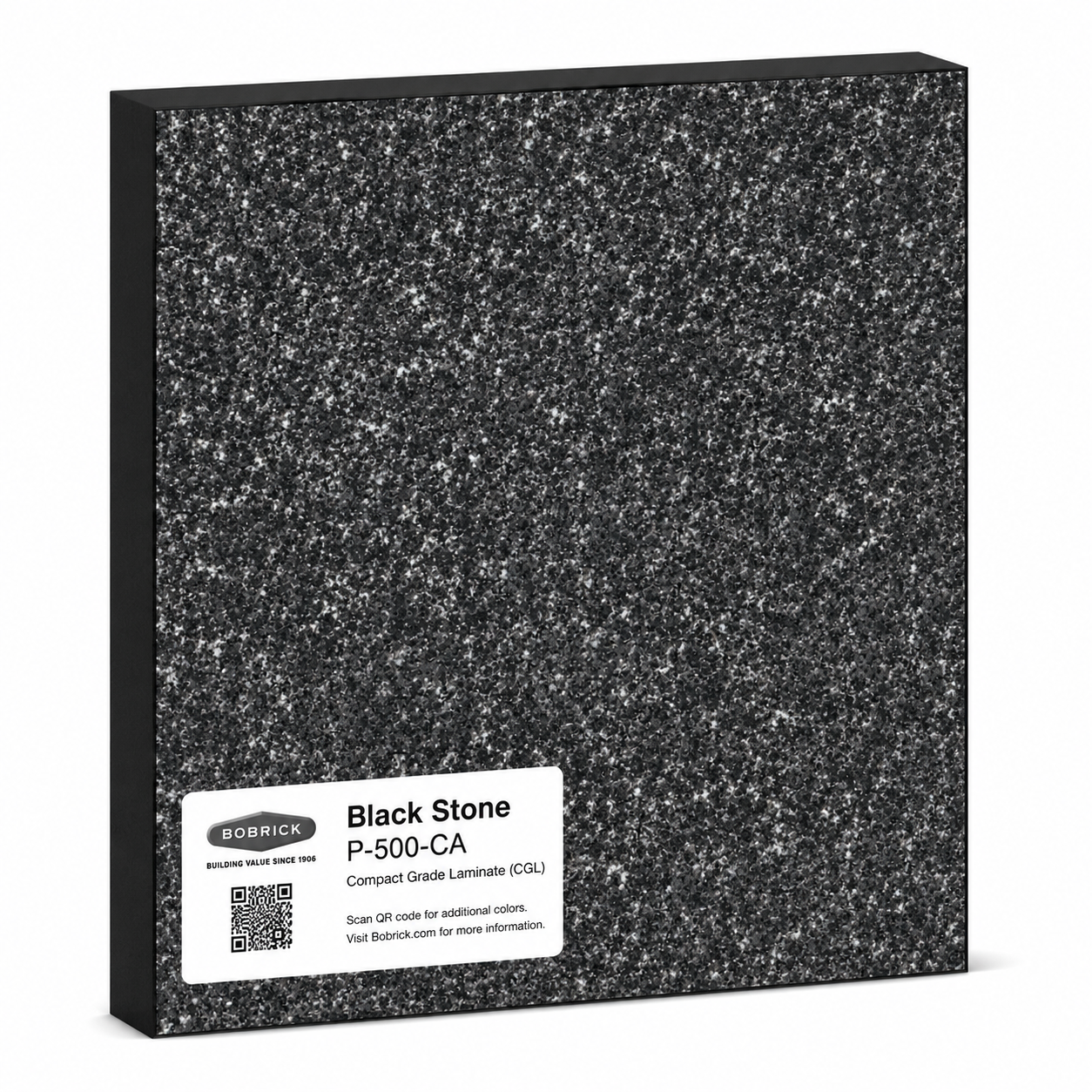

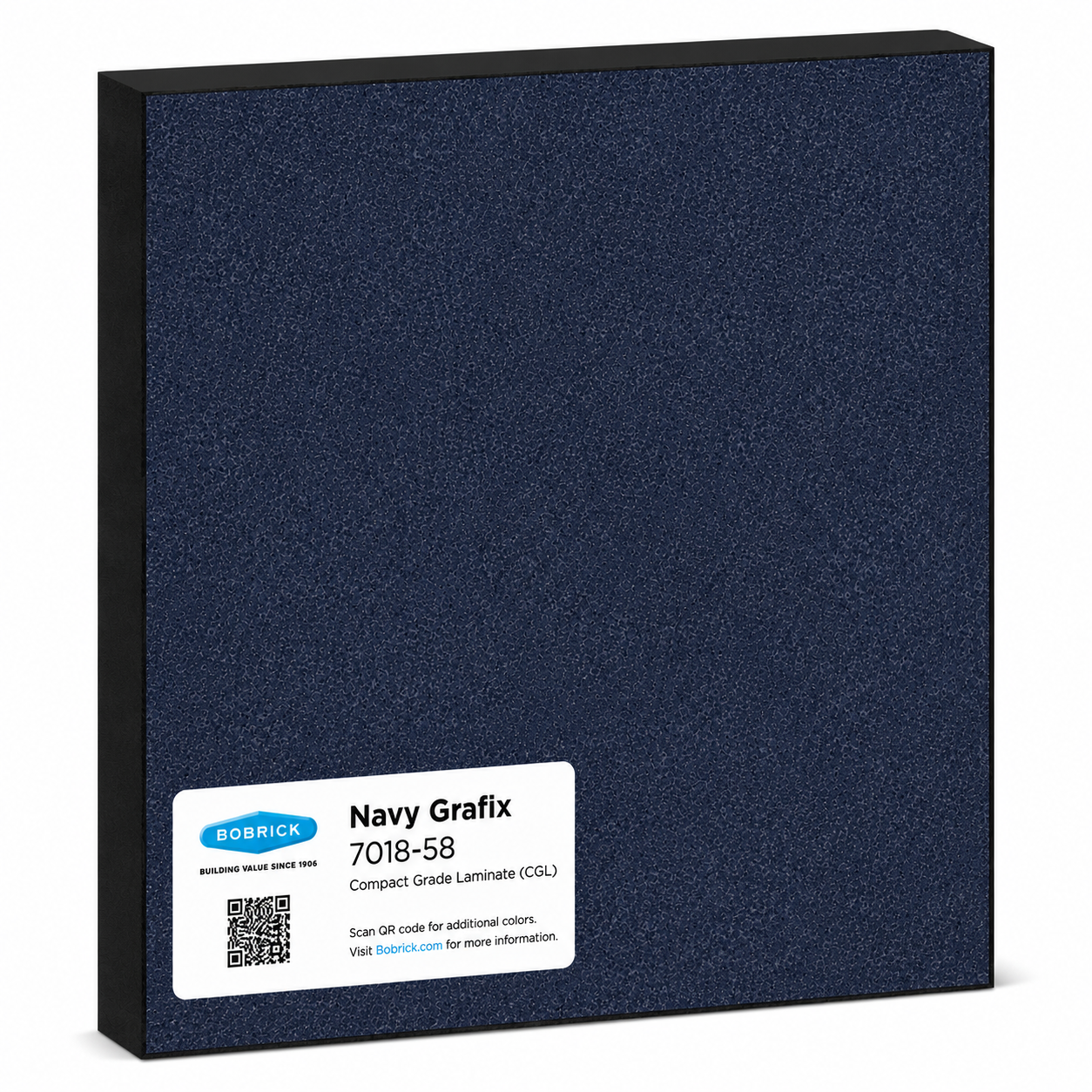

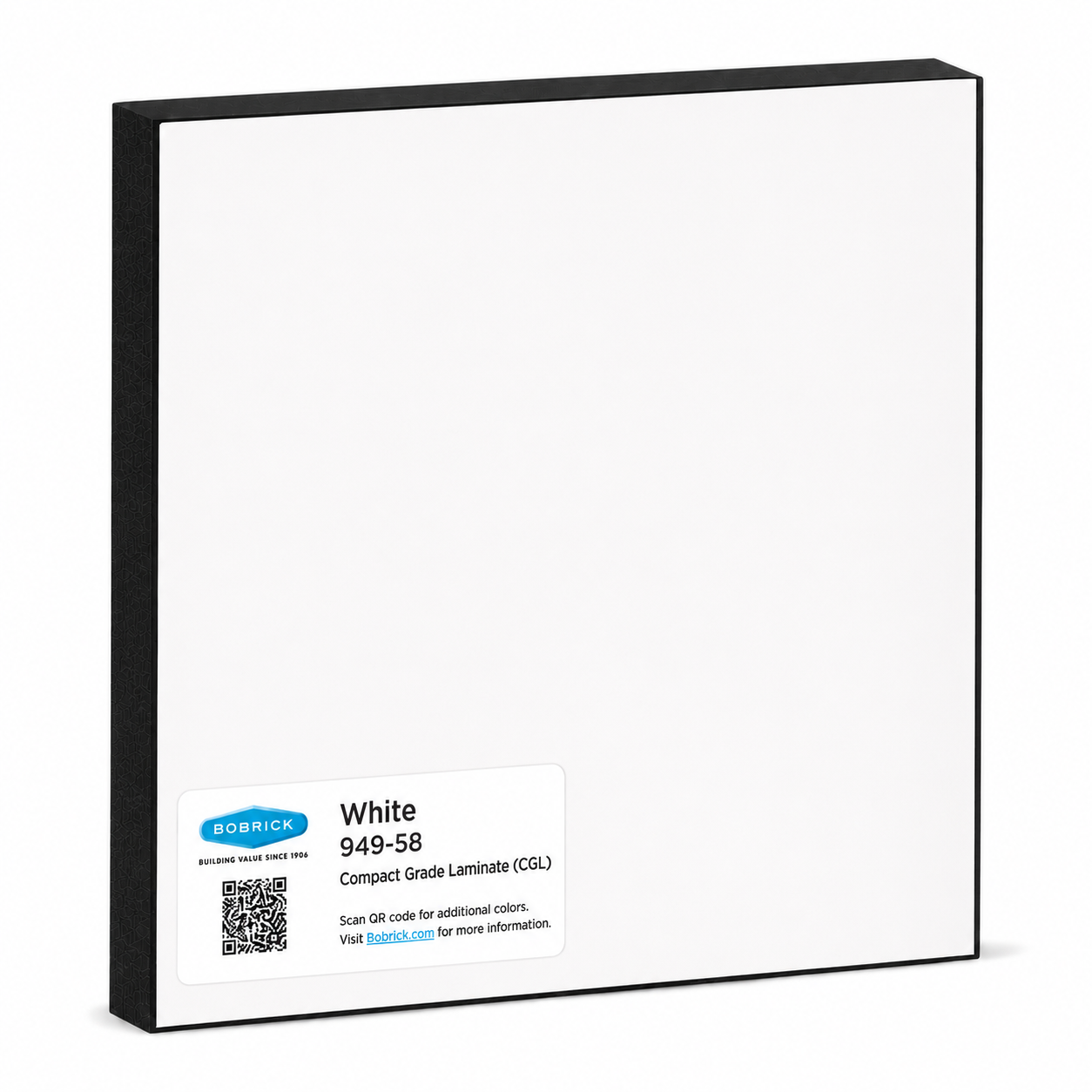

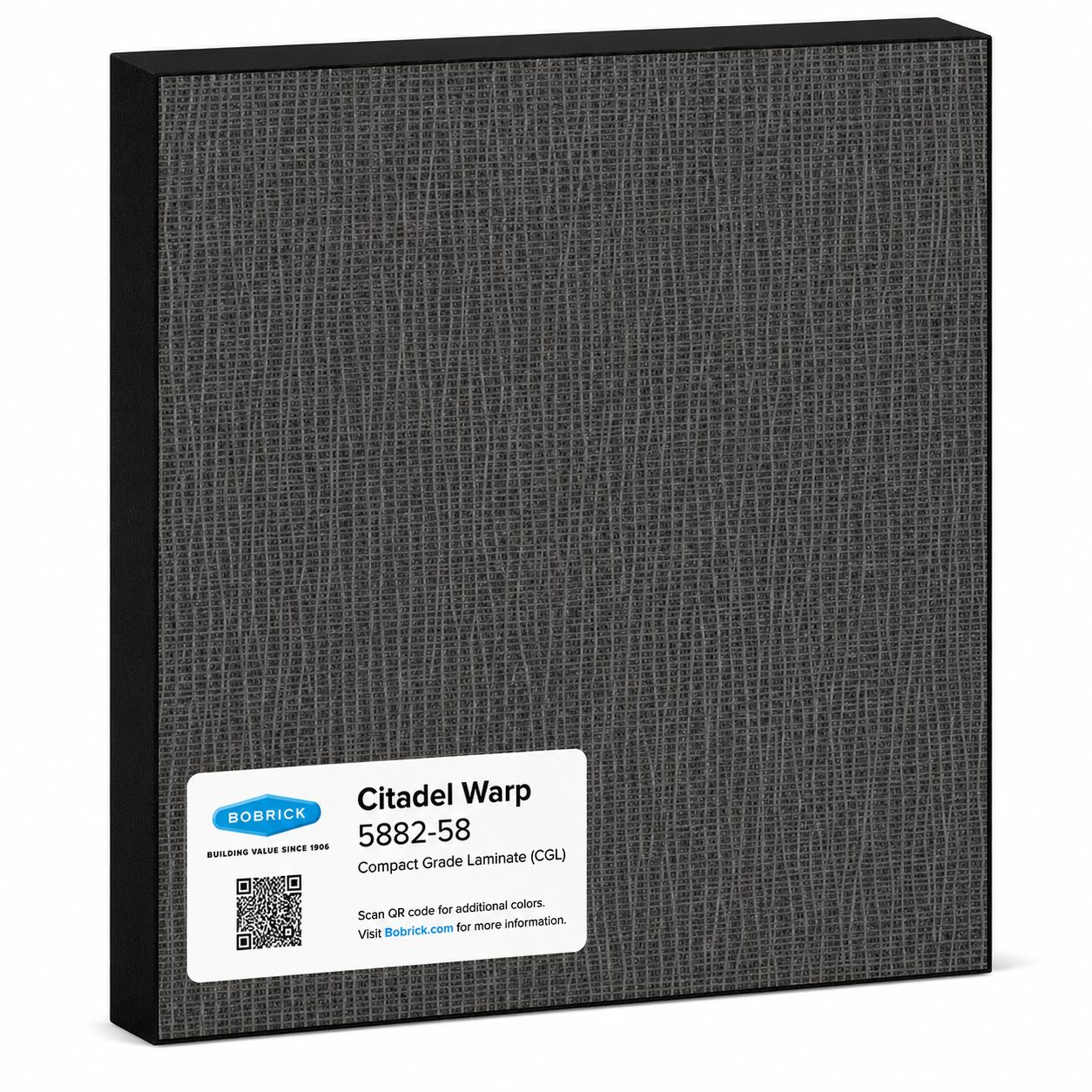

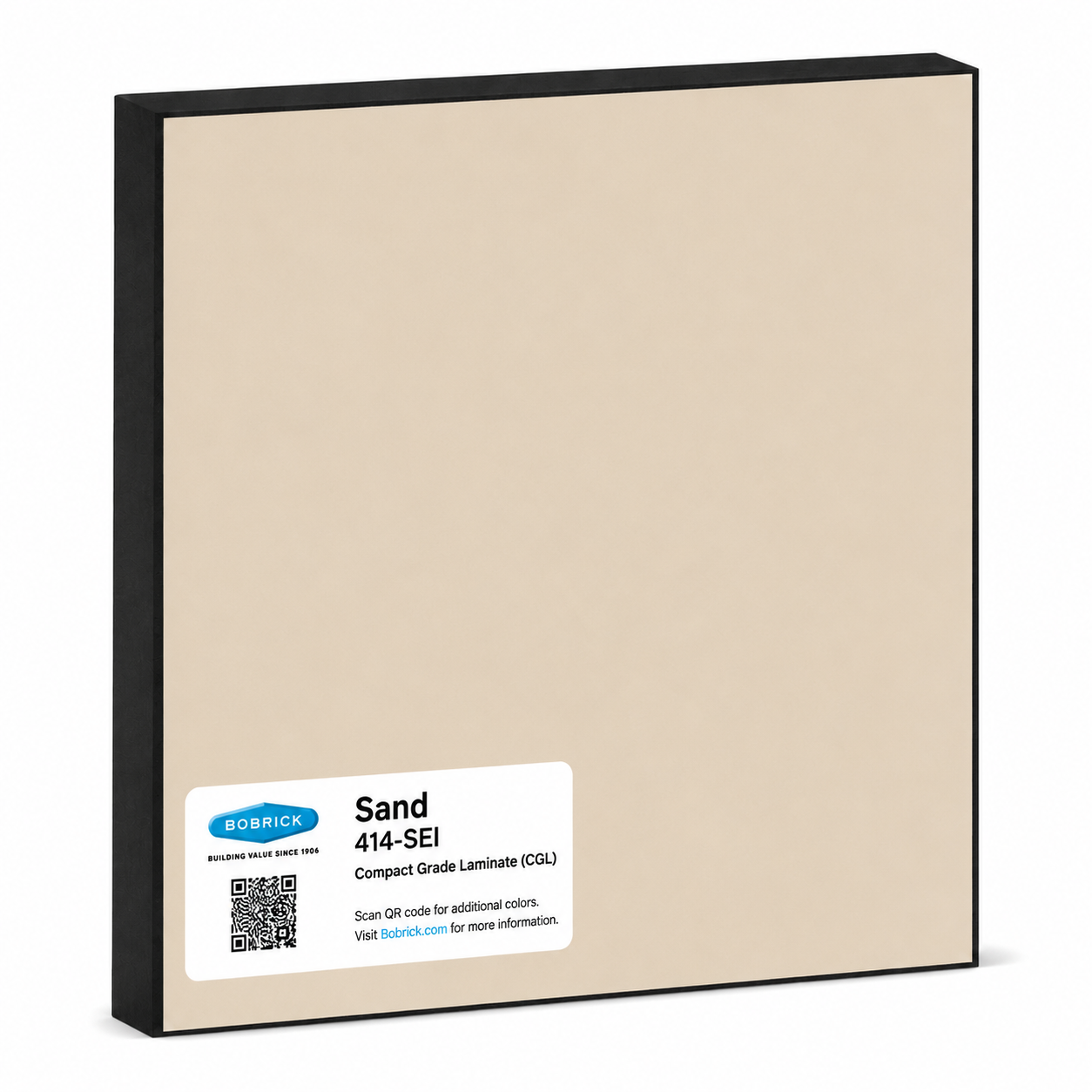

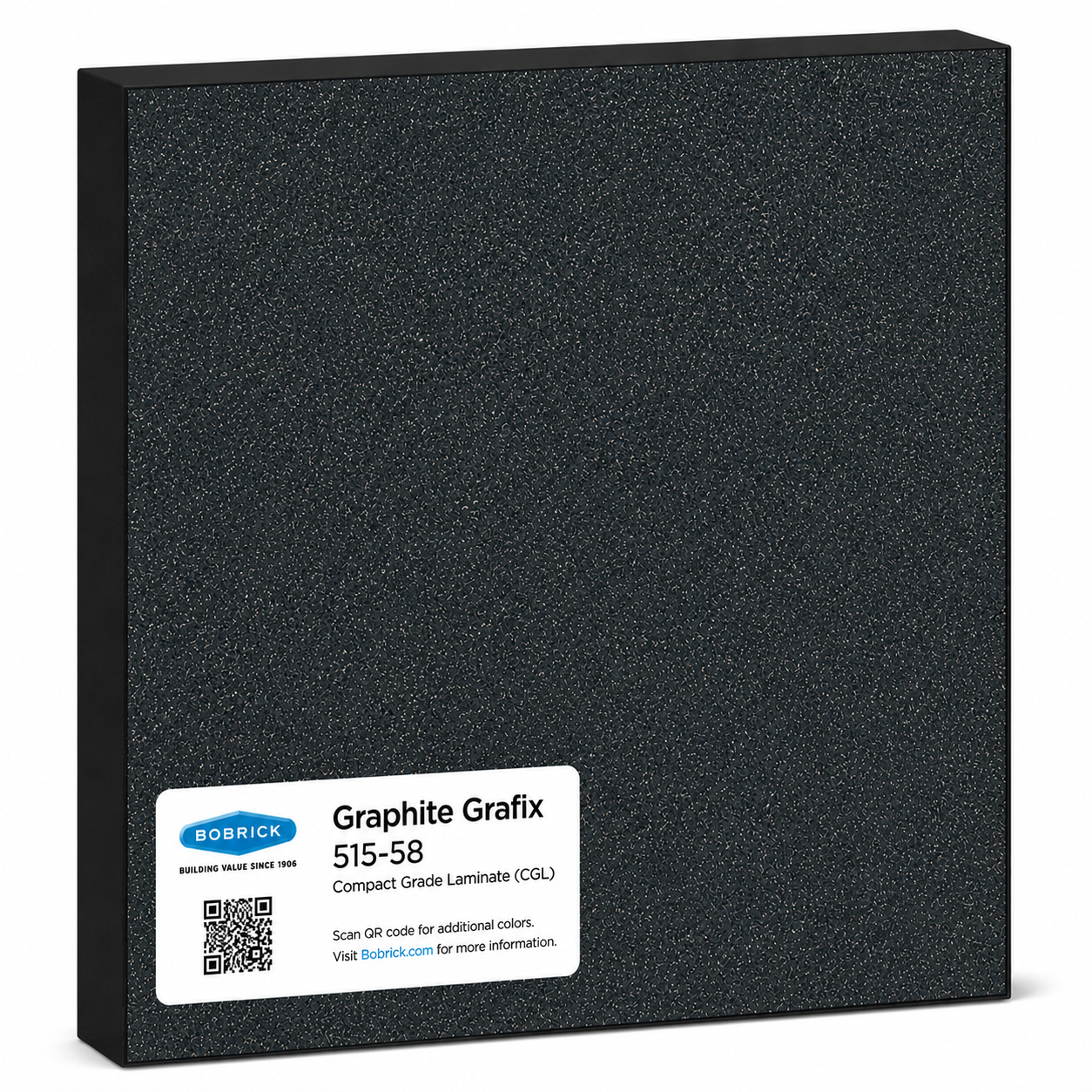

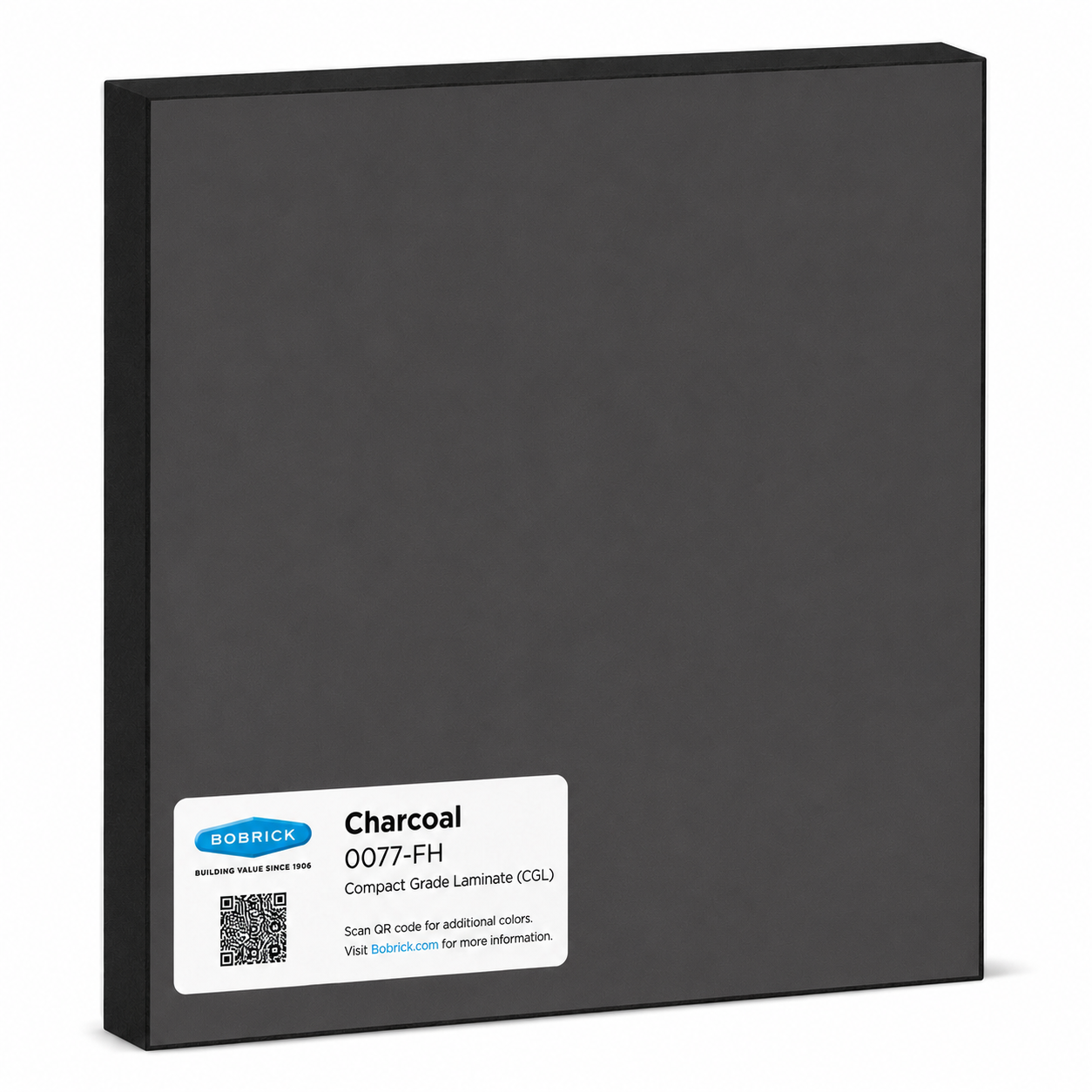

- Color Options: 18 choices in color and style
- Style Range: Basic staples to modern options
- Mounting: Overhead-braced design for robust support
- Privacy Features: Gapless wall posts and routered gapless doors available
Dimensions
- Doors: 22-37″ wide × 58″ high (559-940mm × 1473mm)
- Panels: Up to 84″ wide × 58″ high (2134mm × 1473mm)
- Urinal Screens: 1/2″ (13mm) thick with various height/width options
Structural Components
- Headrail: Extruded anodized aluminum with enclosed, sloping top and grip-resistant edge
- Wall Posts: 1″ × 1½” (25 × 38mm) Type-304 stainless steel tubing, pre-drilled for hardware
- Anchoring: 3/16″ (5mm) chromate-treated, double zinc-plated steel angle leveling bar

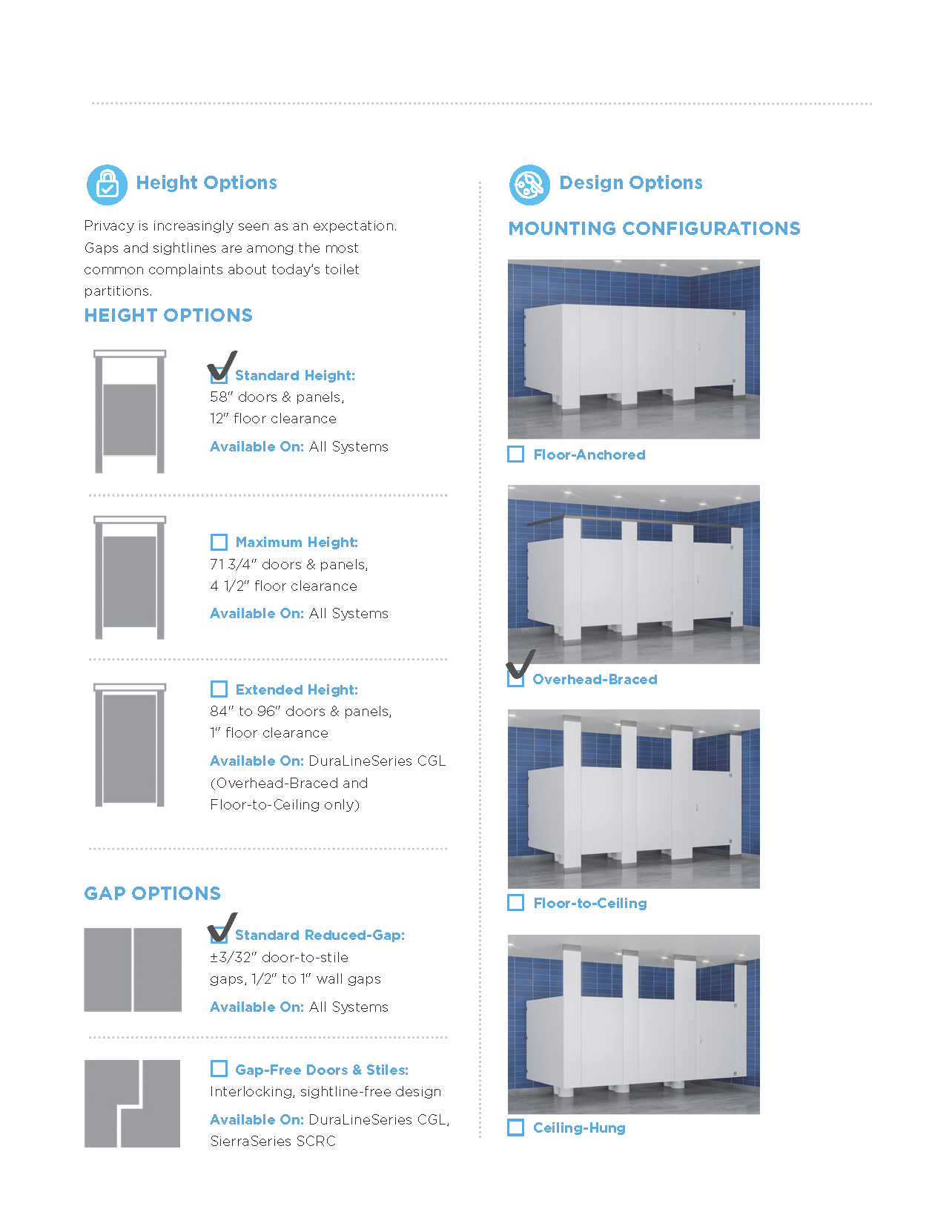

Privacy and Safety Options
- Privacy Enhancement: Overhead-braced design eliminates sightlines
- Occupancy Indicators: Optional indicator latches and automatic signs available
- Gapless Design: Wall posts can be combined with routered gapless doors
Maintenance Features
- Easy Cleaning: Non-ghosting coating for simple upkeep
- Graffiti Resistance: Easy graffiti removal capability
- Impact Resistance: Highly resistant to tears, dents, and breaks
- Durability: Designed for years of heavy use
Installation Requirements
- Installation: Designed for easy installation with provided instructions
- Structural Support: Requires proper support in walls and floors
- Mounting Style: Overhead-braced system
Warranty Coverage
- Extended Warranty: 25 years limited warranty
- Coverage: Protection against breakage, corrosion, delamination, and factory workmanship defects
Performance Benefits
- High Traffic Durability: Engineered for heavy-use commercial and institutional environments
- Low Maintenance: Non-ghosting coating and graffiti-resistant surface
- Aesthetic Flexibility: 18 color and style options to match diverse restroom designs
- Environmental Responsibility: Type-304 stainless steel contains 50-70% post-industrial recycled content
Target Applications
Schools, universities, mass transit facilities, offices, industrial facilities, and any heavily used buildings with high traffic and wet areas requiring durable, low-maintenance partition solutions.
Key Differentiators
The 1082 Series combines DuraLine compact laminate construction with extensive color options and privacy enhancements, making it ideal for environments requiring both durability and aesthetic flexibility. The 25-year warranty demonstrates exceptional confidence in long-term performance.
