Description
Surface-Mounted Multi-Roll Toilet Tissue Dispenser
MODEL B-2888
PRODUCT OVERVIEW
The Bobrick B-2888 surface-mounted multi-roll toilet tissue dispenser delivers continuous tissue availability through its dual-roll design with automatic drop-down functionality. Constructed from type-304 stainless steel with all-welded construction, this unit provides commercial-grade durability for high-traffic washroom environments.
| Key Features | |
|---|---|
| Construction Method | All-welded, seamless door front |
| Roll Capacity | Two rolls up to 5.25″ diameter |
| Sheet Capacity | 1800 sheets per roll |
| Dispensing Method | Automatic drop-down mechanism |
| Security | Tumbler lock, theft-resistant spindles |
| Compliance | ADA compliant at 28″ mounting height |
✓ Type-304 Stainless Steel
✓ Theft-Resistant Design
✓ Commercial Grade
MATERIAL SPECIFICATIONS
Cabinet Construction
18-8, type-304 stainless steel, 22-gauge (0.8mm) thickness. All-welded construction ensures structural integrity. Exposed surfaces feature architectural satin finish.
Door Assembly
Type-304 stainless steel, 22-gauge body with 18-gauge (1.2mm) frame. One-piece drawn seamless front construction. Secured with two permanent rivets.
Dispensing Mechanism
18-gauge (1.2mm) type-304 stainless steel inner housing and cam. Engineered for smooth operation and durability.
Spindle Components
Heavy-duty, one-piece molded ABS construction. Theft-resistant design retained when door is locked.
| Material Properties | |
|---|---|
| Steel Grade | 18-8, Type-304 (Austenitic) |
| Corrosion Resistance | Suitable for institutional environments |
| Surface Finish | Satin finish on all exposed surfaces |
| Lock Type | Tumbler lock, keyed like other Bobrick accessories |

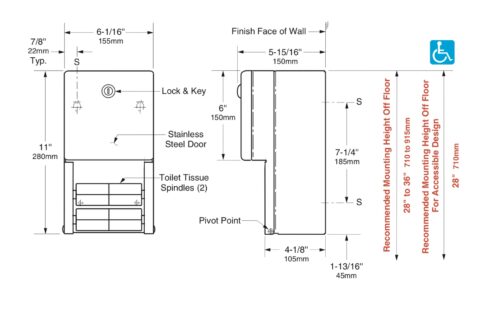

TECHNICAL DIMENSIONS
| Unit Dimensions | |
|---|---|
| Overall Width | 6-1/16″ (155mm) |
| Overall Height | 11″ (280mm) |
| Overall Depth | 5-15/16″ (150mm) |
| Projection | 5-15/16″ (150mm) |
| Capacity Specs | |
|---|---|
| Number of Rolls | 2 standard-core |
| Max Roll Diameter | 5-1/4″ (133mm) |
| Sheets per Roll | ~1800 sheets |
| Core Type | Standard core |
INSTALLATION SPECIFICATIONS
| Mounting Heights | |
|---|---|
| Standard Mounting Range | 28 to 36 inches (710 to 915mm) off floor |
| ADA Compliant Height | 28 inches (710mm) off floor |
| Mounting Points | Four points for secure attachment |
| Fastener Size | #10 x 5/8″ (4.8 x 16mm) sheet-metal screws |
Installation by Wall Type
Solid Partitions
Particleboard or solid-core: Use four #10 x 5/8″ sheet-metal screws or through-bolts with nuts and washers.
Hollow-Core Metal
Provide solid backing for screws. Back-to-back installations require threaded sleeves and machine screws.
Drywall/Plaster
Install concealed backing per local codes. Secure with sheet-metal screws into backing.
Masonry/Other
Use fiber plugs, expansion shields, or 3/16″ (5mm) toggle bolts/expansion bolts.
OPERATION & MAINTENANCE
| Operating Specifications | |
|---|---|

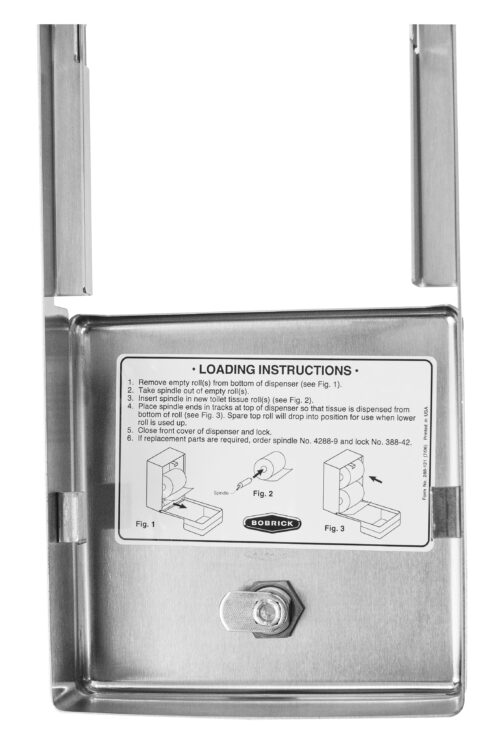

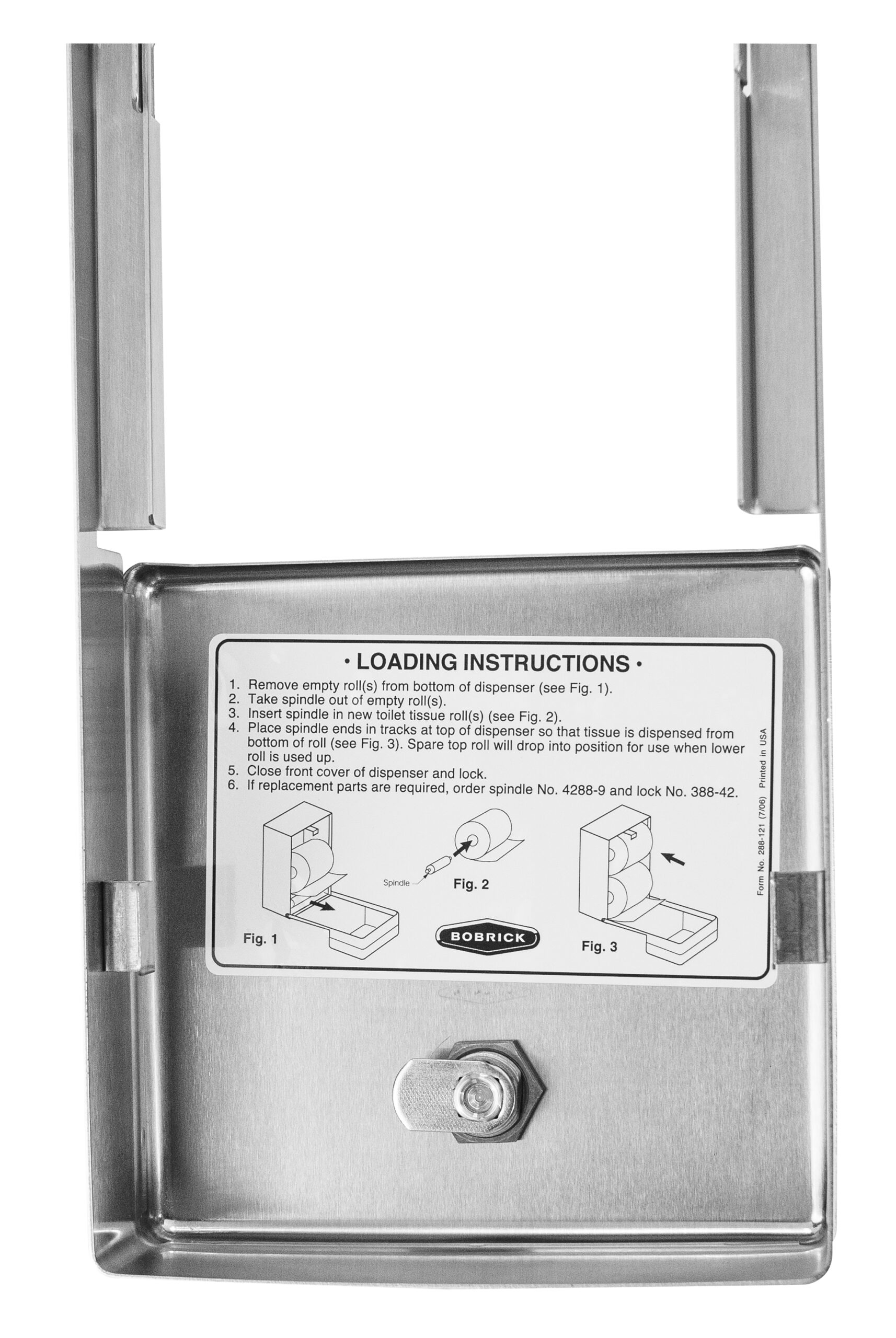

| Loading Method | Tissue rolls loaded and locked into dispensing mechanism |
| Dispensing Action | Manual pull dispensing from bottom roll |
| Roll Transition | Automatic drop-down when bottom roll depletes |
| Roll Removal | Depleted rolls removable only after unlocking door |
| Security Features | Locked spindles prevent unauthorized roll removal |
| Spindle Retention | Spindles remain secured when door is locked |
