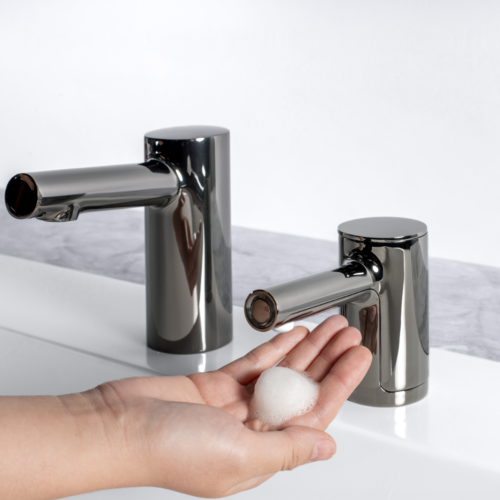

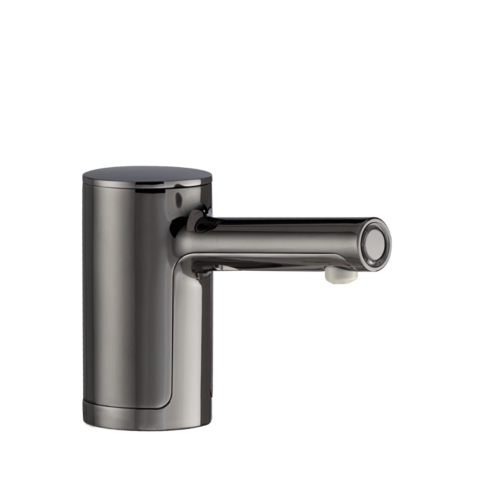

Bobrick B-901 Counter-Mounted Automatic Fino Collection Top-Fill Foam Soap Dispenser, Polished Graphite

• Die cast zinc spout, Polished Graphite finish; Delrin plastic stem
• Counter mounted; counters up to 2″ thick, 1-3⁄8″ diameter hole
• Spout 5 9⁄16″ L x 3 15⁄16″ H; 18-1⁄2″ clearance needed below counter
• 34-fl oz (1.0-L) bottle; automatic, top-fill foam soap

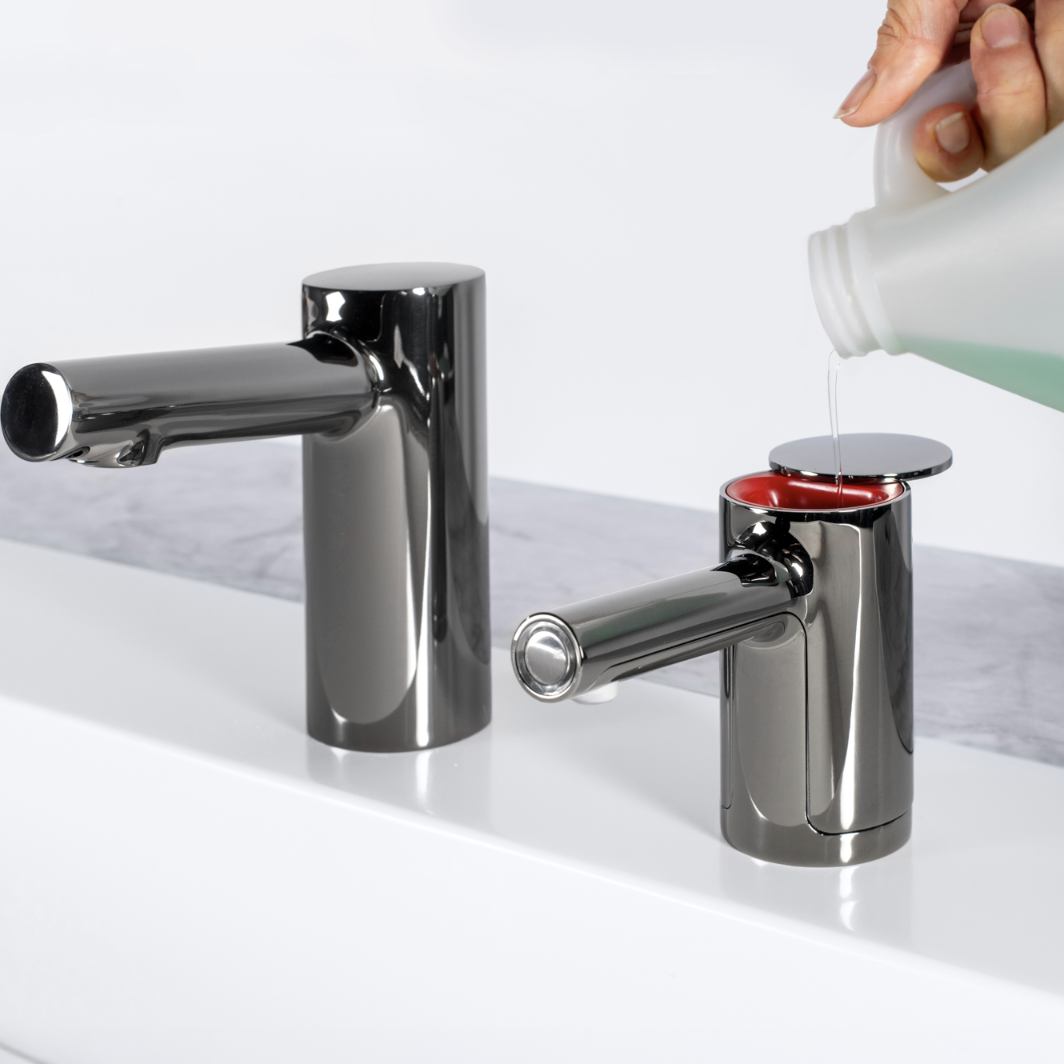

The Bobrick B-901 is a Fino Collection counter-mounted automatic top-fill foam soap dispenser with a Polished Graphite finish. The die cast zinc spout sits above the counter on a Delrin plastic stem, and the 34-fl oz (1.0-L) translucent, shatter-resistant high-density polyethylene bottle is filled from above through a spring loaded 180 degree rotatable lid with a concealed locking mechanism. An IR sensor starts each dispense, and two stage foam mixing with a control dial lets the foam texture be adjusted. A low soap LED on the spout flashes blue with approximately 25% capacity remaining. The unit fits counters up to 2″ thick through a 1-3⁄8″ diameter hole, needs 18-1⁄2″ of clearance below the counter and comes with a 6V AC adapter. It is made for foam soaps with a viscosity under 100 cP, not alcohol or iodine based.
