Description
Materials

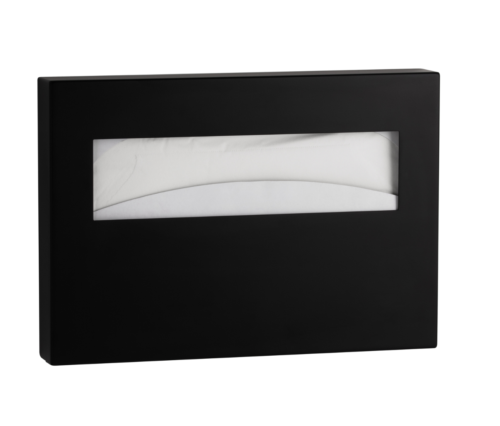

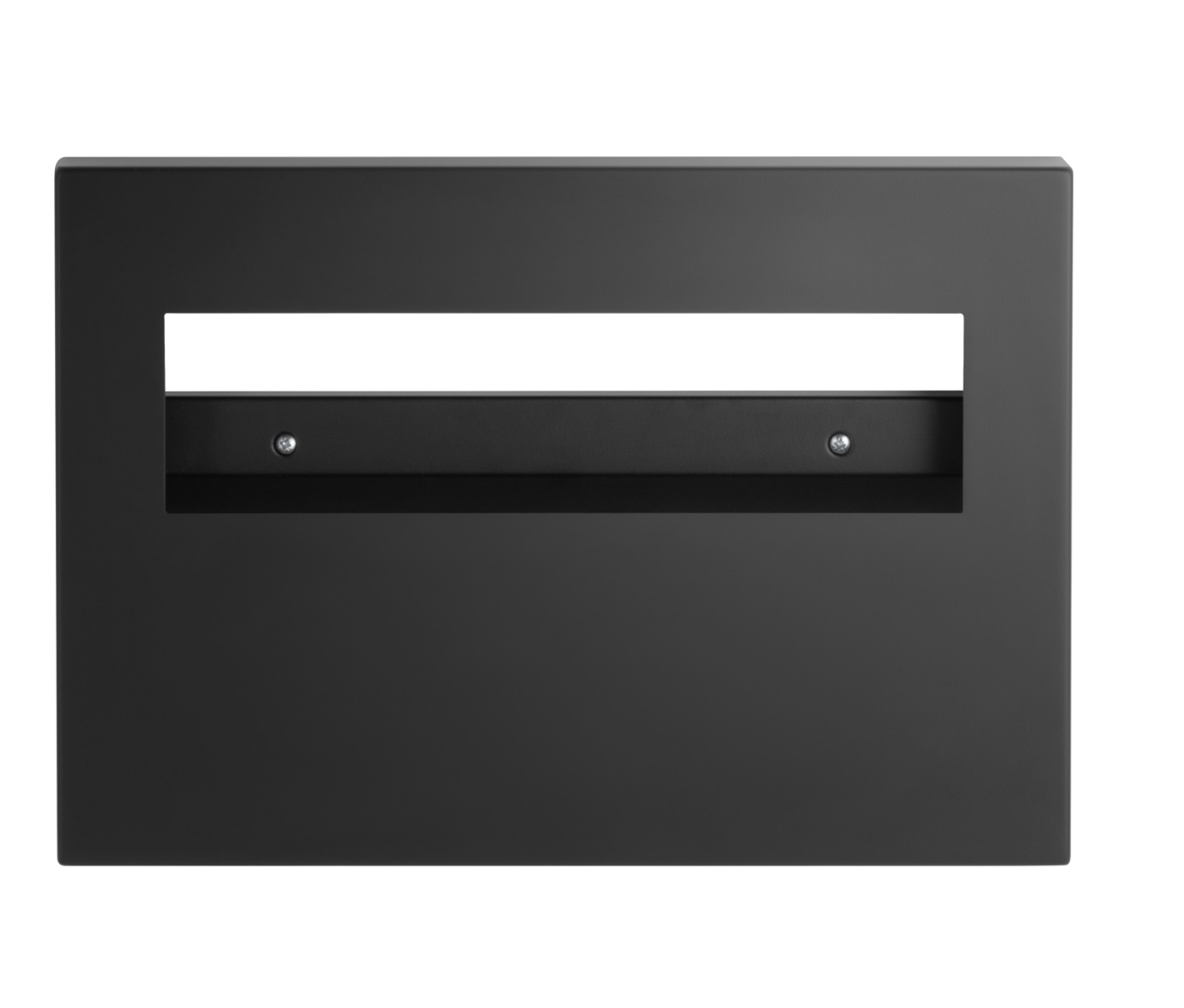

The dispenser is constructed from 18-8, Type-304, 18-gauge (1.2mm) stainless steel. It features seam-welded construction throughout. Exposed surfaces are finished in matte black.
Operation
This unit is designed to dispense single- or half-fold paper toilet seat covers from the front opening. It holds a capacity of up to 250 covers or one standard box. Refilling is accomplished through a concealed opening located at the bottom of the dispenser.
Installation
Mount the unit on the wall or toilet partition using two flat-head screws (not furnished) at the designated points. For plaster or drywall construction, provide concealed backing to comply with local building codes before securing the unit. For other wall surfaces, use fiber plugs, expansion shields, or 1/8″ (3mm) toggle or expansion bolts. Provide a minimum clearance of 5″ (125mm) from the bottom of the dispenser to the top of any horizontal projection to allow room for filling. To comply with accessibility guidelines, mount the unit so the top of the dispenser opening does not exceed 48″ (1220mm) above the finished floor for ADA/ICC standards, or 40″ (1015mm) for California Building Code (CBC) standards
