Description
Bobrick 1082G Series Gap-less Toilet Partitions
Product Overview
The Bobrick 1082G Series represents a premium offering in commercial restroom partitions, specifically designed for environments demanding enhanced privacy, exceptional durability, and simplified maintenance. Part of the Bobrick DuraLine Series®, the “G” denotes its defining gap-less design, which completely eliminates sightlines.
Unrivaled Privacy Features
Gap-less Design: Precisely routered doors seamlessly attach to gap-less wall posts, ensuring no sightlines into compartments. This superior privacy is crucial for high-end facilities, educational institutions, and settings where user comfort and discretion are top priorities.
Key Specifications
Material and Construction
- Core Material: DuraLine Series Compact Grade Laminate (CGL)
- Construction: Solid-core, non-porous material for maximum resilience
- Thickness: Doors and stiles 3/4″ (19mm), panels 1/2″ (13mm)
- Edge Treatment: Clean black edges throughout
- Fire Rating: Class A or B ASTM E84 compliant; select options meet ICC, NFPA Class A

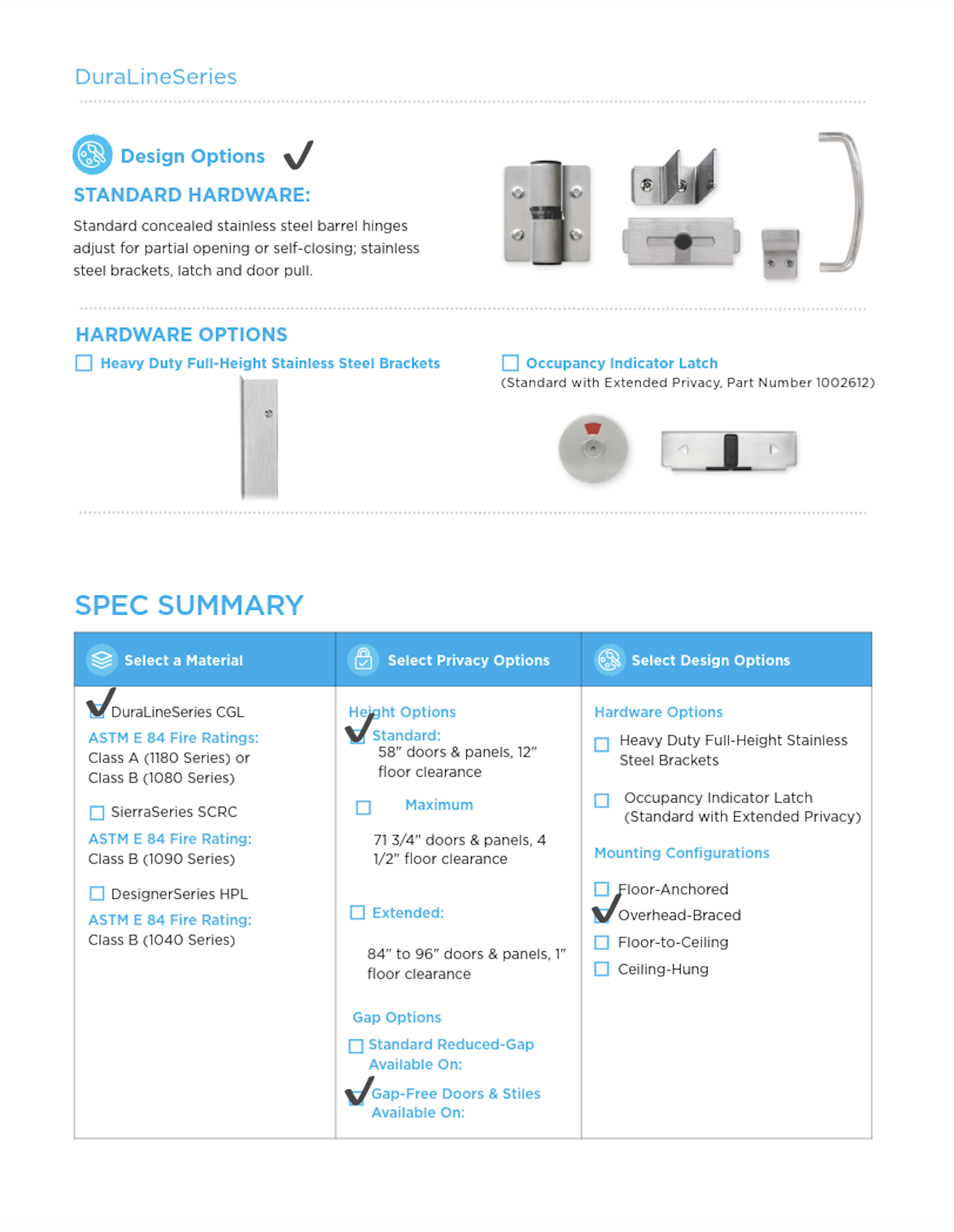

Hardware Features

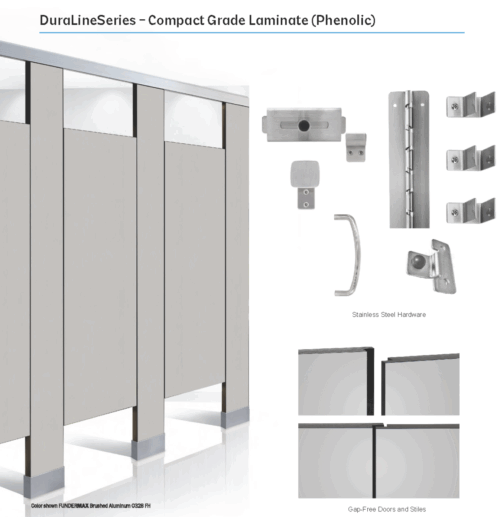

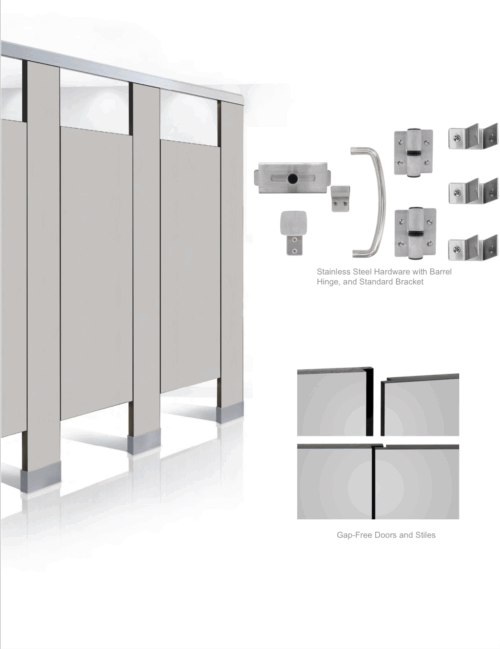

- Material: Heavy-gauge 18-8, Type-304 stainless steel
- Hinges: Concealed barrel hinges with emergency access capability
- Security: Theft-resistant pin-in-head Torx screws
- Installation: Factory-installed threaded inserts for secure attachment
- Mounting: Overhead-braced system with extruded anodized aluminum headrail

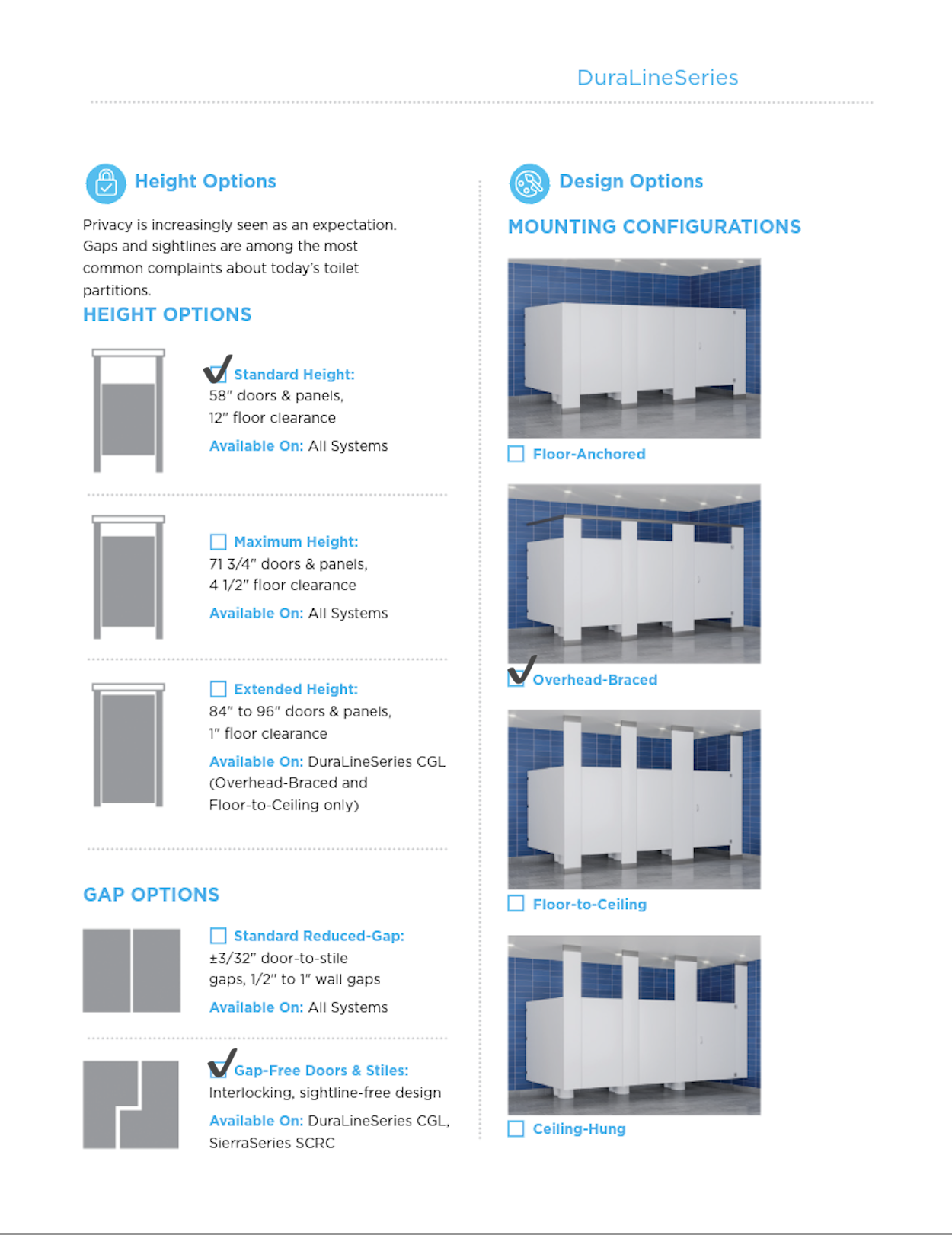

Privacy and Design
- Gap-less System: Eliminates all sightlines through routered door design
- Color Options: 18 standard colors and patterns/styles available
- Style Range: Includes popular woodgrains and contemporary finishes
- Design Integration: Seamless integration with diverse architectural schemes
Dimensions
- Standard Height: Doors and panels 58″ (1473mm) high
- Floor Clearance: 1/2″ standard clearance
- Custom Sizing: Made-to-order for specific project requirements
- Configuration: Overhead-braced mounting system
ADA Compliance Features
- Operation: One-hand operation without tight grasping, pinching, or twisting
- Force Requirement: Maximum 5 pounds (22.2N) activation force
- Standards Compliance: Meets ADA Sections 404.2 and 309.4
- Emergency Access: Lift door to disengage latch from outside
Durability and Maintenance
- Impact Resistance: Highly resistant to tears, dents, breaks, and scratches
- Moisture Resistance: Suitable for hose-down maintenance and wet environments
- Graffiti Resistance: Non-ghosting coating allows easy marking removal
- Surface Properties: Smooth, non-porous surfaces resist dirt and grime accumulation
Installation Requirements
- Mounting System: Overhead-braced configuration for stability
- Wall Support: Requires proper wall backing for mounting brackets
- Professional Installation: Factory-installed threaded inserts simplify setup
- Structural Support: Heavy-duty applications supported by robust headrail system
Environmental Considerations
- Recycled Content: Stainless steel hardware contains 50-70% post-industrial recycled content
- LEED Contribution: Materials can contribute to LEED building categories
- Green Certification: Select laminate options are GreenGuard® Certified
- Sustainability: Aligns with green building initiatives
Warranty Coverage
- CGL Components: 25 years limited warranty on panels, doors, and stiles
- Coverage: Protection against breakage, corrosion, delamination, and factory workmanship defects
- Hardware: 1 year warranty on hardware and mounting brackets
- Conditions: Under normal use and proper installation
Performance Benefits
- Maximum Privacy: Gap-less design completely eliminates sightlines for ultimate user comfort
- Extreme Durability: CGL construction ideal for high-traffic and vandal-prone areas
- Low Maintenance: Easy-clean surfaces and graffiti resistance reduce operational costs
- Long-Term Value: 25-year warranty ensures reliable long-term investment
- Aesthetic Versatility: 18 design options integrate with diverse interior schemes
Target Applications
High-end commercial facilities, educational institutions, healthcare facilities, corporate offices, and any high-traffic public or institutional setting where enhanced privacy, exceptional durability, and professional appearance are paramount.
Key Differentiators
The 1082G Series stands out through its true gap-less design that completely eliminates sightlines, combined with premium DuraLine Series CGL construction. The “G” designation represents the pinnacle of privacy in commercial restroom partitions, backed by an industry-leading 25-year warranty.
Purchasing Information
Made-to-Order: Available through authorized Bobrick distributors and specialized suppliers. Always confirm the specific 1082G gap-less configuration and verify the 25-year product warranty when purchasing.
