Gamco BCS-3 Surface-Mounted Baby Changing Station
Product Overview
The Gamco BCS-3 Baby Changing Station, a product from Gamco (a division of Bobrick Washroom Equipment, Inc.), is a premium surface-mounted, horizontal unit designed for robust use in commercial restrooms. It combines exceptional durability, comprehensive safety features, and user-friendly operation, making it a reliable choice for public facilities requiring superior infant care accommodations with professional-grade performance and compliance.
ADA Compliance & Accessibility
Universal Access Design: Designed to comply with 2010 ADA Standards (ADAS) and 2009/2017 International Code Council (ICC) A117.1 Standards when properly installed. Mounting height places the changing bed at 33 inches (838mm) from the floor for optimal accessibility, ensuring barrier-free access for all users while maintaining safety and operational efficiency.
Key Specifications
Construction & Materials
- Material: Durable polypropylene plastic construction

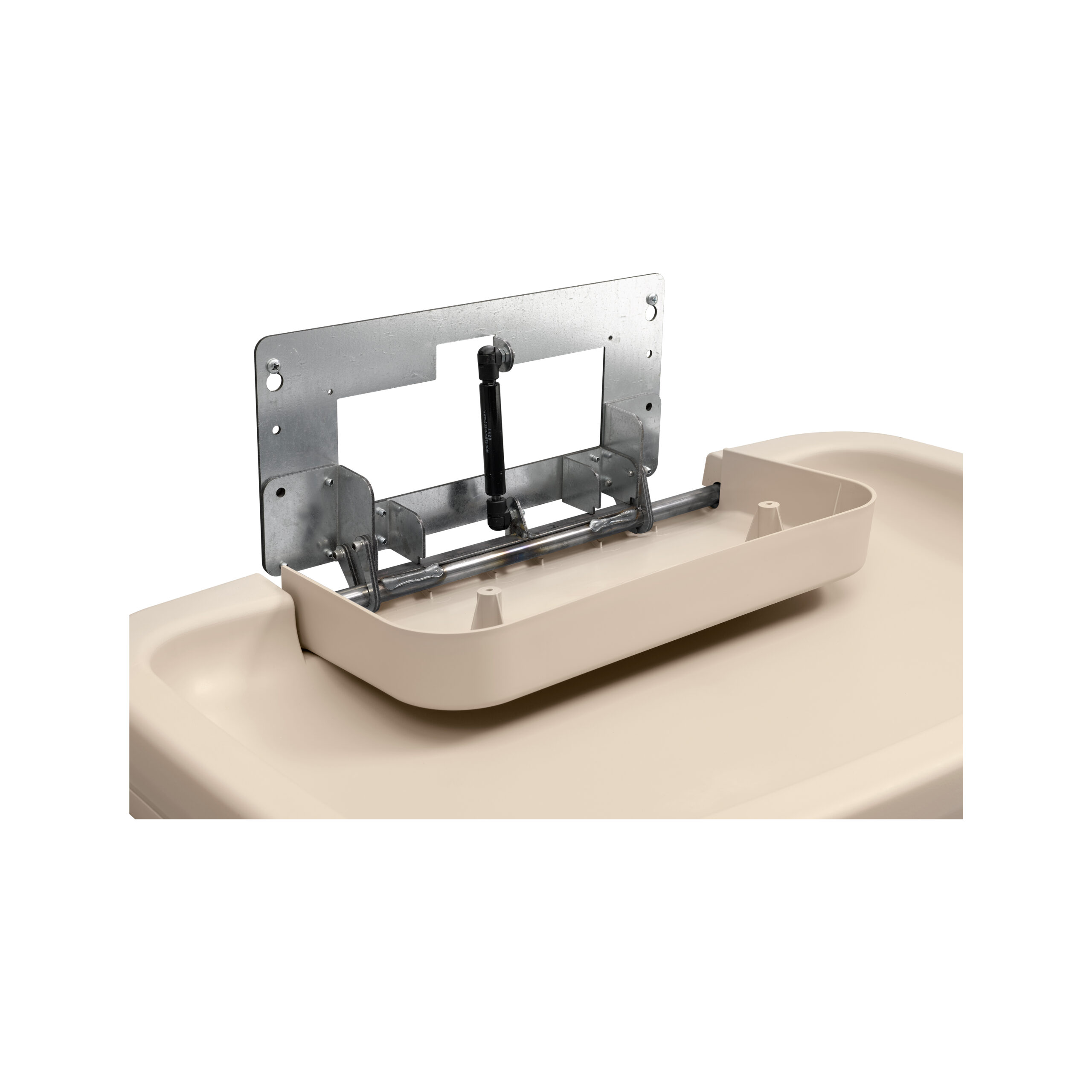

- Frame: Internal steel frame for maximum structural integrity
- Hinge System: Steel-on-steel hinge for superior strength and wear resistance
- Antimicrobial Protection: Microban® additive resists odors and bacterial growth
- Pneumatic Operation: Built-in shock mechanism for controlled opening/closing
Capacity & Dimensions
- Weight Capacity: Supports static load up to 150 lbs (68 kg)
- Recommended Use: Maximum 50 lbs (22.7 kg) for infants up to 3.5 years
- Closed Dimensions: 35″ W × 22″ H × 4″ D (889 × 730 × 102 mm)
- Open Extension: 22-15/16 inches (582 mm) from wall
- Changing Surface: 442 square inches (2873 sq mm) contoured area
Safety & Compliance Features
- Safety Standards: ASTM F2285-04 Standard Safety Performance Specification
- Additional Compliance: ASTM G21 Antifungal, ASTM G22 Antibacterial
- International Standards: EN 12221:2008, ANSI A117.1, ANSI Z535.4
- Safety Strap: Adjustable nylon strap with cam-lock buckle
- Warning Graphics: Molded safety messages in six languages including Braille
Installation Requirements
- Mounting Type: Surface-mounted to permanent wall structure
- Mounting Height: Top at 46-1/2″ (1181mm) from floor (ADA compliant)
- Stud Centers: Four mounting holes on 16″ (406mm) or 32″ (813mm) centers
- Operating Clearance: 8-15/16″ (228mm) on both sides when open
- Professional Installation: Must be performed by qualified person or carpenter
Advanced Safety Features
- Pneumatic Control: Built-in shock mechanism ensures smooth, controlled operation
- Contoured Surface: Specially designed changing area provides secure infant positioning
- Cam-Lock Buckle: Professional-grade safety restraint system with audible engagement
- Anti-Microbial Protection: Microban® additive prevents odor and bacterial growth
- Multi-Language Warnings: Safety messages molded in six languages plus Braille
- Load Distribution: Internal steel frame distributes weight evenly across mounting points
User Convenience Features
- Integrated Bag Hooks: Convenient storage for diaper bags and personal items
- Built-in Liner Dispenser: Cavity for 3-ply chemical-free biodegradable bed liners
- Smooth Operation: Pneumatic cylinder provides effortless opening and closing
- Color Options: Available in cream and light grey for aesthetic flexibility
- Space-Efficient Design: Compact profile maximizes restroom space utilization
Installation Guidelines
- Wall Requirements: Must attach to permanent wall capable of supporting substantial load
- Pilot Holes: 1/8″ bit for wood studs, 7/32″ masonry bit for tile/masonry
- Mounting Hardware: Typically included with unit (toggles may require separate purchase)
- Professional Setup: Installation by qualified carpenter required for safety compliance
Durability & Performance
- Heavy-Duty Construction: Internal steel frame provides exceptional structural integrity
- Wear Resistance: Steel-on-steel hinge mechanism minimizes mechanical wear
- Chemical Resistance: Polypropylene material withstands commercial cleaning products
- Impact Resistance: Robust construction handles high-traffic commercial environments
- Long Service Life: Quality materials and engineering ensure extended durability
- Temperature Stability: Materials maintain performance across temperature variations
Maintenance & Serviceability
- Daily Cleaning: Easy maintenance with spray disinfectant and microfiber cloth
- Smooth Surfaces: Non-porous polypropylene facilitates thorough sanitization
- Component Inspection: Regular checks of safety strap, buckle, and pneumatic operation
- Liner Replenishment: Built-in dispenser requires periodic restocking of bed liners
- Replacement Parts: Comprehensive service parts program available
- Warning Label Maintenance: Ensure all safety graphics remain intact and readable
Manufacturing Information
- Country of Origin: Proudly manufactured in the USA
- Manufacturer: Gamco, a division of Bobrick Washroom Equipment, Inc.
- Quality Standards: Rigorous testing to multiple safety and performance standards
- Customer Support: Bobrick Customer Service at (818) 982-9600
Performance Benefits
- Enhanced Safety: Multiple safety standards compliance with comprehensive restraint system
- Superior Hygiene: Microban® antimicrobial protection and easy-clean surfaces
- Operational Reliability: Pneumatic mechanism ensures consistent, smooth operation
- Universal Accessibility: ADA-compliant design accommodates all users effectively
- User Convenience: Integrated storage hooks and liner dispenser enhance functionality
- Professional Durability: Steel-reinforced construction provides years of reliable service
Target Applications
Commercial office buildings, educational institutions, healthcare facilities, hospitality venues, retail establishments, restaurants, family entertainment centers, shopping malls, airports, government buildings, and any public or institutional restroom requiring reliable, safe, and accessible baby changing facilities with professional-grade performance and comprehensive safety compliance in high-traffic commercial environments.
Key Differentiators
The BCS-3 stands out through its combination of robust internal steel frame construction, innovative pneumatic control system, and comprehensive safety compliance including ASTM F2285-04 certification. The Microban® antimicrobial protection, multi-language safety graphics with Braille, and professional-grade cam-lock buckle system ensure optimal safety, hygiene, and accessibility in demanding commercial restroom environments.
Critical Safety Notice
Important: Never leave a child unattended. Always use the restraint system and keep one hand on the child at all times. Designed for infants only, up to 3.5 years of age and weighing less than 50 lbs (22.7 kg). Do not place parcels or accessory items on the unit as this may cause instability. Professional installation by qualified carpenter required. Mounting hardware typically included, but toggles may require separate purchase for certain wall types.
