Description
Gamco BCS-4 Surface-Mounted Baby Changing Station – Light Grey
Product Overview
The Gamco BCS-4 Baby Changing Station in Light Grey is a premium surface-mounted, horizontal unit specifically designed for commercial restrooms, offering a safe, hygienic, and convenient solution for parents and caregivers. As a Gamco product (a division of Bobrick Washroom Equipment, Inc.), this unit benefits from robust engineering, superior materials, and strict adherence to industry standards, making it an exceptional choice for high-traffic commercial facilities.
ADA Compliance & Accessibility
Universal Access Design: The BCS-4 is ADA compliant when properly installed, ensuring accessibility for all users in commercial environments. Installation positioning places the changing bed at 33 inches (838mm) from the floor with the unit bottom at 26-1/2 inches (673mm), providing optimal accessibility while maintaining safety and operational efficiency for caregivers of all abilities.
Key Specifications
Construction & Materials
- Material: FDA-approved blow-molded high-density polyethylene plastic
- Color: Light Grey finish for contemporary aesthetic appeal
- Frame: Internal steel frame for superior strength and durability
- Hinge System: Reinforced full-length steel-on-steel hinge mechanism
- Antimicrobial Protection: Microban additive inhibits odor-causing bacteria
Capacity & Dimensions
- Weight Capacity: Supports up to 150 lbs (68 kg) structural load
- Recommended Use: Maximum 50 lbs (22.7 kg) total weight including infant and bags
- Age Range: Designed for infants up to 3.5 years old
- Closed Dimensions: 35″ W × 22″ H × 4″ D (889 × 730 × 102mm)
- Changing Surface: 442 square inches (2873 sq mm) contoured area
Operational Features
- Pneumatic Operation: Built-in cylinder ensures controlled opening and closing
- Wall Extension: 22-15/16 inches (582mm) when fully open
- Safety Restraint: Durable nylon safety straps with secure buckle system
- Storage Solutions: Integrated bag hooks built into changing bed
- Liner Dispenser: Built-in cavity for sanitary bed liners (sold separately)
Installation & Mounting
- Mounting Type: Surface-mounted to permanent wall structure

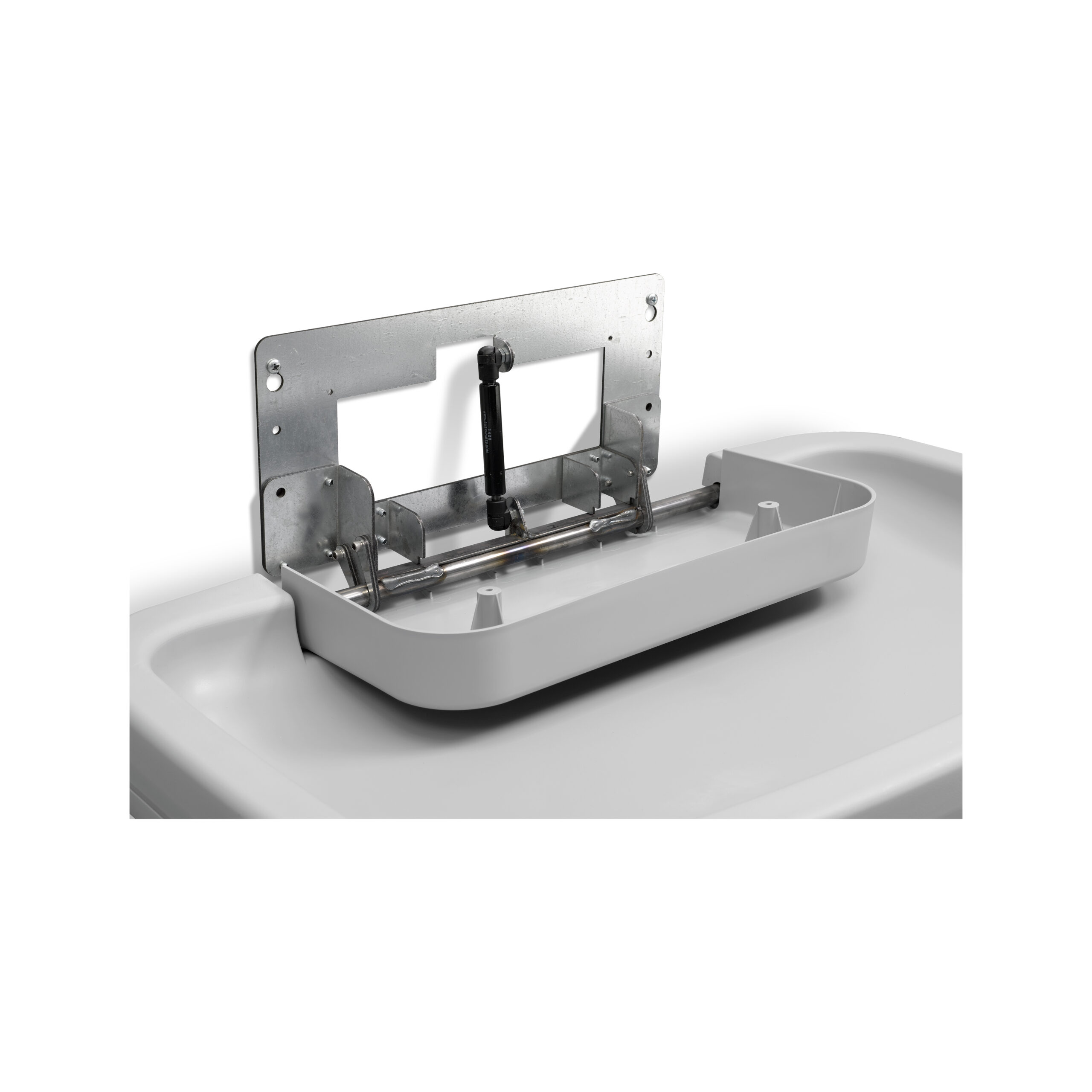

- Mounting Plates: 11-gauge steel mounting plates for secure attachment
- Stud Centers: Compatible with 16″ or 32″ stud center spacing
- Operating Clearance: 8-15/16″ (228mm) on both sides when open
- Professional Installation: Must be performed by qualified person or carpenter
Advanced Safety & Compliance
- Multi-Language Warnings: Molded-in safety messages in six languages plus Braille
- FDA Approval: Material meets FDA standards for safety and hygiene
- Antimicrobial Technology: Microban additive provides ongoing protection against bacteria
- Structural Integrity: Internal steel frame distributes loads safely across mounting points
- Controlled Operation: Pneumatic cylinder prevents sudden opening or closing
- Secure Restraint: Professional-grade safety strap system with audible engagement
Installation Specifications
- Mounting Height: Top left hole at 44″ (1118mm) from floor for ADA compliance
- Wall Requirements: Must attach to permanent wall capable of substantial load support
- Pilot Holes: 1/8″ (3mm) for wood studs, 7/32″ (5mm) for masonry applications
- Hardware Included: Mounting hardware typically provided (toggles may require separate purchase)
- Special Fasteners: 1/4″ × 3″ panhead wood screws with washers for masonry/tile over wood
User Convenience Features
- Contoured Surface: Specially designed changing area for secure infant positioning
- Integrated Storage: Built-in bag hooks provide convenient personal item storage
- Smooth Operation: Pneumatic assistance ensures effortless opening and closing
- Hygienic Design: Built-in liner dispenser promotes sanitary changing practices
Durability & Performance
- Heavy-Duty Construction: Internal steel frame provides exceptional structural support
- Hinge Longevity: Full-length steel-on-steel mechanism minimizes wear and maintenance
- Chemical Resistance: High-density polyethylene withstands commercial cleaning products
- Impact Resistance: Blow-molded construction handles high-traffic commercial environments
- Temperature Stability: Materials maintain performance across environmental variations
- Corrosion Resistance: Steel components treated for moisture and chemical resistance
Maintenance & Serviceability
- Daily Sanitization: Hospital-grade disinfectant compatible surfaces throughout
- Component Inspection: Regular checks of pneumatic operation, straps, and buckles
- Easy Cleaning: Smooth, non-porous surfaces facilitate thorough sanitization
- Replaceable Components: Comprehensive service parts program for long-term maintenance
- Visual Inspections: Clear warning labels and graphics assist in routine checks
- Liner Management: Simple dispenser cavity for sanitary bed liner replacement
Manufacturing Excellence
- Country of Origin: Proudly manufactured in the USA
- Manufacturer: Gamco, a division of Bobrick Washroom Equipment, Inc.
- Quality Assurance: Rigorous testing and quality control processes
- Engineering Standards: Robust engineering with adherence to industry best practices
Performance Benefits
- Superior Safety: Multi-layer safety systems including restraints, warnings, and controlled operation
- Enhanced Hygiene: Microban antimicrobial protection and FDA-approved materials
- Operational Reliability: Pneumatic cylinder system ensures consistent, smooth performance
- Universal Accessibility: ADA-compliant design accommodates all users effectively
- Professional Durability: Steel-reinforced construction provides years of dependable service
- User Convenience: Integrated storage and liner dispenser enhance functionality
Target Applications
Commercial office buildings, educational institutions, healthcare facilities, hospitality venues, retail establishments, restaurants, family entertainment centers, shopping malls, airports, government buildings, transportation hubs, and any public or institutional restroom requiring reliable, safe, and accessible baby changing facilities with professional-grade performance, comprehensive safety compliance, and aesthetic appeal in high-traffic commercial environments.
Key Differentiators
The BCS-4 Light Grey stands out through its combination of FDA-approved high-density polyethylene construction, robust internal steel frame, and sophisticated pneumatic control system. The Microban antimicrobial technology, reinforced full-length steel-on-steel hinge mechanism, and 11-gauge steel mounting plates ensure optimal safety, hygiene, and long-term reliability, while the contemporary light grey finish provides aesthetic versatility in modern commercial restroom environments.
Critical Safety & Installation Notice
Important: Maximum recommended total weight is 50 lbs (22.7 kg) including infant and any parcel bags. Designed for infants up to 3.5 years old only. Professional installation by qualified carpenter required to ensure proper setup and building code compliance. Unit must be attached to permanent wall capable of supporting substantial load. Do not use if any parts are broken or missing. Mounting hardware typically included, but toggles may require separate purchase for certain wall types.
