| Title | Type | Size | |
|---|---|---|---|
|

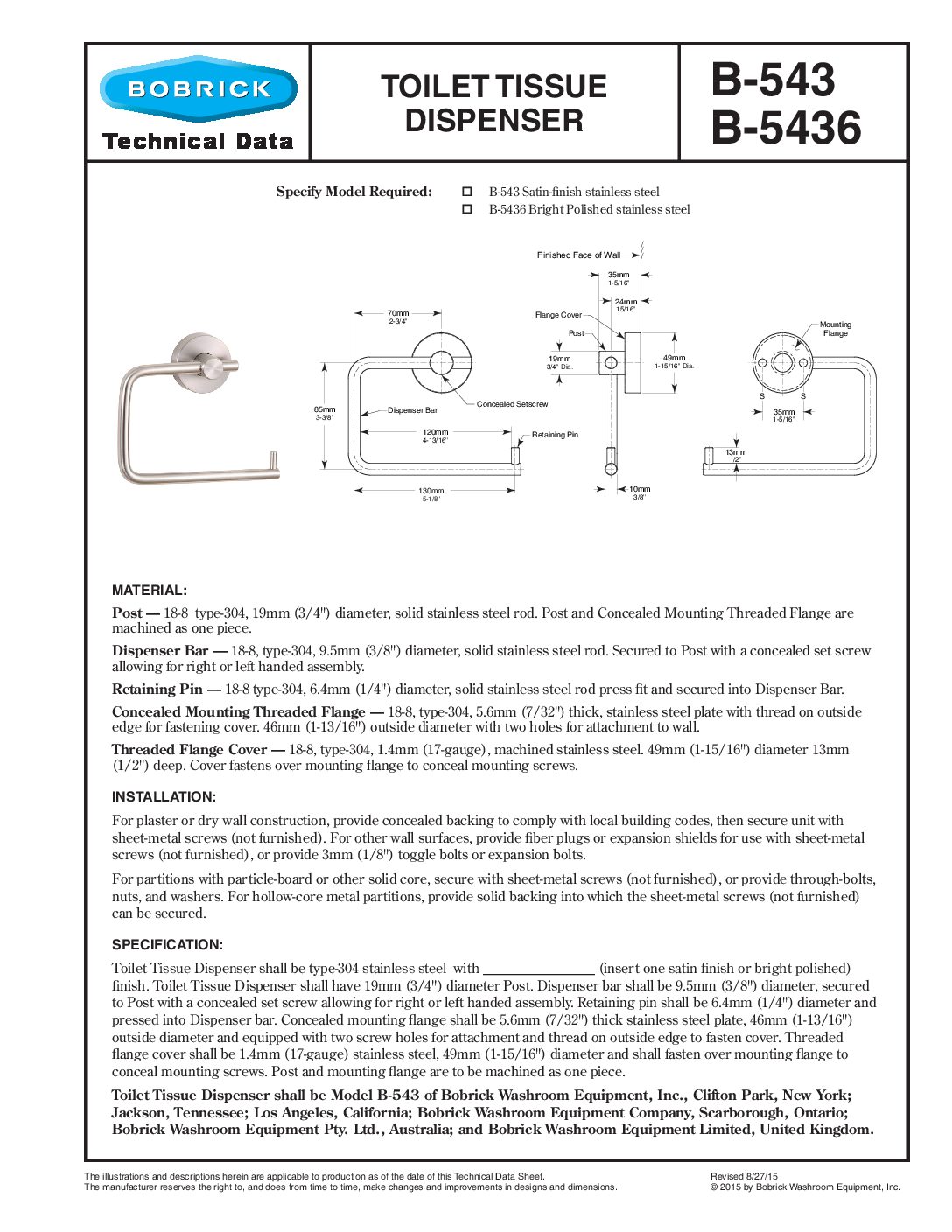

B-543 Technical Data | application/pdf | 99 KB |
|
Bobrick Warranty | application/pdf | 174 KB |
Bobrick B-543 Surface Mounted Single Roll Toilet Tissue Dispenser
$76.59
Log in for discounts
FREE GROUND SHIPPING IN USA
In stock
SKU: B-543
- Type-304 stainless steel, satin finish
- Wall mounted; post and flange machined as one piece
- 5-1⁄8″ W dispenser bar; post projects 1-5⁄16″ from wall
- Bar assembles for right- or left-hand use
The Bobrick B-543 is a Cubicle Collection single-roll toilet tissue dispenser in type-304 stainless steel with a satin finish. A 3⁄4″ diameter solid stainless steel post and its mounting flange are machined as one piece. The 3⁄8″ solid stainless dispenser bar is held with a concealed set screw, so it can be assembled for right- or left-hand use, and a 1⁄4″ diameter retaining pin is press fit into the bar. A 1-15⁄16″ diameter, 17-gauge threaded flange cover conceals the mounting screws, which are not furnished. Plaster or dry wall installations need concealed backing. Model B-5436 is the same dispenser in bright polished stainless steel.
